Jeep JT Gladiator 3.5" Rocklander® Overland Suspension & Lift Kit

Rating:
100% of 100
Product ID
A3835*

MetalCloaks top of the line 2.5" mid-arm Game Changing Suspension System for the JT Gladiator has an emphasis on Overlanding that outperforms all others utilizing patented technology available nowhere else.

Features Include:
  • Duroflex™ Joints enhanced with Kevlar
  • True Dual Rate™ Overland Coils
  • Durotrak™ equipped track bars
  • Height adjustable bump stops
  • Specifically tuned shocks for True Dual Rate Coils
  • Designed for maximum UP and DOWN travel
The MetalCloak Game Changing Duroflex™ Joints are the only vulcanized [click for more...] elastomer, self-centering joint enhanced with DuPont™ Kevlar® fiber – providing incredible durability with more misalignment in the control arms and better vibration dampening than anything else available. Exclusive to MetalCloak (see detailed info in the main body).

True Dual Rate™ Overland Coils provide the most comfortable and stable ride over traditional single rate lift springs, and provide better load handling than the typical "progressive/multi-rate" coils. Overland systems feature our True Dual Rate coils that are extra long in free-length to maintain contact for extreme articulation and can handle higher payloads without sagging. MetalCloak has over a decade of proven dual-rate coil performance.

The front true dual rate coils come with MetalCloak's Front Lower Coil Correction Pads. This polymer isolator replaces the OEM plastic part and corrects the coil bow that may be caused when using the worn parts. Fits in factory location and is a quick upgrade to fine tune your Jeep.

MetalCloak Thermoset Elastomer Coil Isolator upgrade pads are designed to last and outperform factory parts. The pads are made specifically for MetalCloak True Dual Rate Coils and are model specific.

The Durotrak bushings reduce NVH (noise, vibration and harshness) that can be transferred to the driver and provides a smoother ride while also improving the vehicles steering input. The patented bushing is a 2-part design that can rotate 360 degrees in a vertical plane unhindered while minimizing horizontal forces to keep the Jeeps axle centered and you going in the right direction.

We offer a choice in shocks; run the shock set-up you choose to fit your build needs. If you have a different idea of what shocks will work best for you- go for it. MetalCloak suspensions ARE designed to optimally be used with the patented MetalCloak 6Pak™ Shocks for maximum up and down travel. Our RockSport Shocks (Exclusively at MetalCloak) provide the next longest travel you can get with the simplicity of a standard shock and share the same valving as 6Paks; this is a great option if looking for a no-maintenance option at a great price. The choice is yours to buy the suspension with or without shocks; we recommend our specifically tuned shocks but we leave the choice up to you.

Adjustable height front and rear bump stops are a MetalCloak first and allow you to adjust the travel to be tailored to the size of tire you have optioned for. Add more bump stop or remove to adjust to the clearance you need without having to remove the coils.

All MetalCloak suspension components, are designed for maximum up AND down travel while providing the best suspension geometry available to deliver the performance you demand.

MetalCloak “components” have been proven safe with the FMVSS certificate of safety configured with 37inch tires, full body armor and suspension lift.

Note: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."

Note: Due to the long-travel MetalCloak suspensions provide, factory drive shafts will contact OEM components and wear quickly when at the extremes of articulation. An aftermarket driveshaft will be needed. (Front Auto Transmission Drive Shaft)

Note: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether they complement our Game-Changer system or suppress its performance.

Note: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.

Note: MetalCloak Recommends You Have a Suspension Specialist Align Your Jeep Once MetalCloak Suspension is Installed.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

Note: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.

Note: RockSport Black Shocks are LARGE BODIED 2.5 diameter long-travel shocks. Specific brackets are provided for mounting, dependent on axle type i.e: (wide track axle) Rubicon/Max tow or (standard axle width) Sport Model. Correct wheel backspacing IS required.

[click for less...]


Availability
Usually Ships Within 1 - 2 Weeks
Free Shipping all orders over $70
Price As Configured:

$2,822.00

Customize Jeep JT Gladiator 3.5" Rocklander® Overland Suspension & Lift Kit
[what's this?]
[what's this?]
[what's this?]
[what's this?]
[what's this?]
[what's this?]
Base Option   + $2,109.00

* Required Fields



VIDEOS

MetalCloak's JT Gladiator Suspension is the proven leader among production suspension systems.

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

JT Gladiator Game Changing Suspension

Our top of the line mid-arm Game Changing Suspension System for the Gladiator outperforms all others, featuring MetalCloak's patented technology.

Duroflex 101

This short video covers what you need to know about the basics of the Duroflex Joint. How it should be used and what to expect when using it.

Why Gold Zinc?

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc

Duroflex Joint Maintenance

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Joint Maintenance

Duroflex Joint Revealed

The MetalCloak Duroflex Joint gives better dampening properties over OEM style rubber Clevite Joints and provides more misalignment than “other” inferior Flex Joints.

Vibration Dampening

We tested our Duroflex Joint using a "Shaker Table" and seismometer app to show how much Vibration Dampening the Duroflex Joint gives you compared to other industry leading joints.

A Comparison of Flex

Comparing the Flex of the Duroflex Joint with that of the Johnny Joint, the Teraflex Monster and the typical Clevite.

True Dual Rate Centered Coils 101

This short video covers all you need to know about MetalCloak's True Dual Rate Centered Coils.

Durotrak™ Bushing

Eliminate squeaks and clunks in your steering with the technology of MetalCloak’s Durotrak™ bushings; exclusively found in MetalCloak track bars.

What is Corner Travel Index?

Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the county collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.

FMVSS 126 Compliant

MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.

THE TECH

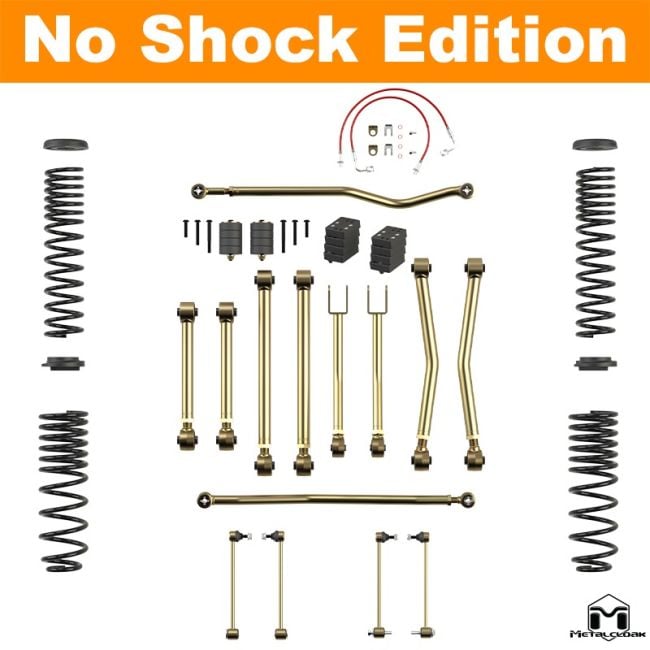

What's In The Kit?

A close-up view of a kit's contents, showcasing various tools and items neatly organized for easy access and use.
  • Duroflex Control Arms
  • Front & Rear True Dual Rate™ Coils
  • Lower Front Coil Isolator Pads
  • Motor Specific Front Coil Isolators
  • Front & Rear Durotrak™ Track Bars
  • Front & Rear Adjustable Bump Stops
  • Front & Rear Sway Bar Links
  • Rear Brake Lines
  • Shock Mounts

If you Choose...

  • No Shocks - Get Outboard Shock Mounts, No Shocks
  • Choose My Own - Get Outboard Shock Mounts, No Shocks
  • Use Stock Shocks - Get Outboard Shock Mounts, Rear Shock Mounts, No Shocks
  • Fox Shocks - Get Fox Shocks & Outboard Shock Mounts
  • RockSport Red Shocks - Get RockSport Red Shocks & Outboard Mounts
  • RockSport Black Shocks - Get RockSport Black Shocks & Outboard Mounts
  • 6Pak - Get 6Pak Shocks & Shock Mounts

IT ALL STARTS WITH THE BUSHINGS

The Patented Duroflex™ Joint (metalcloakpatents.com) is the key to getting the greatest flex in a bolt-on suspension kit. Period.

A graphical comparison of an OEM Clevite plus a typical Flex Joint equaling a MetalCloak Duroflex Joint.

MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.

Black rubber bushing with a metal core.

Now with Kevlar!

DuPont™ Kevlar® Fiber is now compounded in the proprietary elastomer of the Duroflex Bushing, bringing even more strength, durability and performance.

Kevlar® is a synthetic fiber with extremely high tensile strength to weight ratio…five times stronger than steel and commonly used in bullet proof armor applications.

Duroflex Bushings w/Kevlar® can be identified by the MetalCloak “M” located on the outer surface.

Control Arm Duroflex Joint Alignment...

At MetalCloak we take the care to build every product right.

Most manufacturers build their control arms misaligned from center. Why? It simply costs less to do so.

By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.

It makes them easier to install, too!

Comparison of three types of vehicle joints: MetalCloak OEM Alignment, and others misaligned, and parallel offset.

Threaded Forged Ends

Close-up of a metallic forged end with threading and hexagonal nut, on a blurred background.

Forged for Strength...

The adjustable threaded ends are Forged providing a 37% higher fatigue strength over inferior cast parts, this EXTRA rock bashing strength will hold up to whatever you throw at em.

Control Arm Specs

JT Gladiator Lower Front (SKU #7601)
  • CNC Formed
  • 1/4" Wall DOM Steel
  • 1.625" OD
  • Threaded Forged Ends
  • Precision Locking Nut
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
Technical diagram of an adjustable suspension control arm with dimensions and specifications.

JT Gladiator Upper Front (SKU #7602)
  • CNC Machined
  • 3/16" Wall DOM Steel
  • 1.25" OD
  • 3/16" Steel Clevis
  • Precision Locking Nut
  • Gold Zinc Plated
  • Duroflex Joint
  • Threaded Forged Ends
Technical diagram of an adjustable suspension control arm with dimensions and specifications.

JT Gladiator Lower Rear (SKU #7603)
  • CNC Machined
  • 1/4" Wall DOM Steel
  • 1.625" OD
  • Precision Locking Nut
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
  • Lengthened 5/8" for Best Axle Position
  • Threaded Forged Ends
Technical diagram of an adjustable suspension control arm with dimensions and specifications.

JT Gladiator Upper Rear (SKU #7604)
  • CNC Formed
  • 3/16" Wall DOM Steel
  • 1.5" OD
  • Precision Locking Nut
  • Threaded Forged Ends
  • Designed for Oversize Tire Clearance
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
  • Lengthened for Best Axle Position
Technical diagram of an adjustable suspension control arm with dimensions and specifications.

Degrees of Articulation

MetalCloak's Duroflex Joint provides 28˚ more articulation and flex than typical control arms!

Illustration of a "Dual Duroflex Control Arm" with 68° maximum articulation and angular movement indicators. Diagram of a Clevis/Flex Joint Control Arm with 40° articulation range annotations.

What are True Dual Rate Overland Coils?

MetalCloak JT Gladiator True Dual Rate™ Overland Coils have one of the longest free length in the industry for greater articulation with additional load capacity without sacrificing the OEM ride quality.


Without the advantage of the Dual Rate Design, the required Spring Rate would be too low and "squishy" -- just loading your Jeep up with supplies would affect ride height and quality.

Diagram highlighting the suspension coils dual flex rates: extended, compressed, and at ride height with transition point indicated.
Diagram of a front coil spring with specifications like height, wire diameter, and top/bottom coil diameters. Diagram of a rear coil spring with specifications like height, wire diameter, and top/bottom coil diameters.

Lower Front Coil Isolator Correction Pads

Two black circular lower front coil isolator pads with branding, placed on a white background.

Replace the plastic OE factory coil isolator pads that are problematic and cause coil bow. This polymer Isolator replaces the OEM plastic part and corrects the coil bow that may be caused when using the worn parts. Fits in factory location and is a quick upgrade to fine tune your JT Gladiator.

Coil Isolators

MetalCloak Thermoset Elastomer Coil Isolator upgrade pads are designed to last and outperform factory parts. The pads are made specifically for MetalCloak True Dual Rate Coils and are model specific.

Two black circular coil isolator pads with branding, placed on a white background.

Not just any track bar bushing...meet the Patented Durotrak

A animation of a black elastomer bushing with a silver hub in two parts threading together, against a white background.

The Patented Durotrak Bushing (metalcloakpatents.com) is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.

Forged End

The adjustable threaded ends are Forged providing a 37% higher fatigue strength over inferior cast parts, this EXTRA rock bashing strength will hold up to whatever you throw at em.

Gold zinc forged end attached to the factory axle bracket.

Solid Chromoly front track bar keeps you... well.. on track

Formed for ultimate Up-Travel & Down-Travel the Front Track Bar gives unprecedented strength, clearance, and improved ride stability.

Diagram showing Durotrak Track Bar Specifications with material details.Diagram showing Durotrak Track Bar Specifications with dimensions and fitment details.

Stop The Guess Work. Bump It Up!

Two stacks of four black elastomer pucks with a large gold washer covering the top of the stack with three different length bolts for the different heights options on a white background.
MetalCloak Adjustable Bump Stop System...
  • Adjust from 1" - 4" Without Removing Coils
  • Perfect Height Regardless of Tire Size
  • Thermoset Elastomer Dampens Impact
  • Additional Pads Available on Request
(Learn More About Front Adjustable Bump Stops)

Rear Adjustable Bump Stops!

Manufactured from trail-proven natural thermoset elastomer, each puck is designed to work universally with your JT Gladiator.

Designed specifically for the JT Gladiator, the system comes with 4 Rectangular Pucks, allowing for easy adjustment between 1" - 4". (Learn More About Rear Adjustable Bump Stops)
a stack of Black elastomer rectangle bump stops with circular indentations and silver screws on top.

Outboard Shock Mount

MetalCloak Jeep JT Gladiator Outboard Front Lower Shock Mount Spacer Kit:
  • Engineered to move the lower shock mounts away from the Jeep frame rails increasing clearance for the shock body at the extremes of articulation.
  • All Grade 8 hardware provided.

  • Treated with Gold Zinc Chromate for the ultimate in defense against the elements.
  • Manufactured from laser cut 3/16" steel and CNC bent for superior strength and exact fitment.
Close-up of a car's front suspension, highlighting a gold zinced lower shock mount for enhanced shock performance and clearance.
Bracket rotates shock eyelet; allows it to swing with the axle vs bind on the limited elastomer material. The Outboard Front Lower Shock Mount Spacer comes in the NO Shock, RockSport Shock Kits Only. The 6Pak Shocks do not require the outboard shock mount. (Learn More About The Outboard Shock Mount)

Important Note: If using OE wheels 2" spacers will be needed to give proper clearance. These mounts are intended for use for wheels with 4.5" of backspacing or less or an equivalent of a 2" spacer on factory wheels.

Choose Your Shocks

The 6Pak™ Shock

The design of the 6Pak didn't just revolutionize shocks, it changed the suspension game forever.

The Patented MetalCloak 6Pak™ (metalcloakpatents.com) provides the longest shock travel relative to a compressed length for any off-road shock ever built in history, period.

MetalCloak's Long-Travel Shock Technology provides a game-changing platform featuring parallel shafts extending from a floating body, centralized by dual opposing reservoirs; this revolutionary feature allows for twice the usual stroke over typical industry shocks.

Now the problems of low-hanging shocks or limited travel because of your shock body are fully and completely eliminated.

The shock is no longer the limiting factor in your build.

(Learn More About 6Pak Shocks)
A rectangular shock with two red and four black tubes with two silver rods on each end vertically extending up and down showing the full range of compression.
A red and black shock extending and compressing, designed for optimal performance in tuned suspension systems and daily driving stability.

The RockSport RED Shock

It’s not just a shock, it is a piece in a tuned system. This is not a typical bolt on shock. RockSport RED shocks are valved and specifically tuned to work with MetalCloak True Dual-Rate Coils.

MetalCloak has refined the RockSport RED Shocks compression and dampening to provide stable, yet compliant manners for daily driving and also in situations where Long Travel articulation is needed to keep the tires planted on the ground.

RockSport RED Front Shock Length:
  • Extended Length: 30.0"
  • Collapsed Length: 17.7"
RockSport RED Rear Shock Length:
  • Extended Length: 28.0"
  • Collapsed Length: 16.8"

The RockSport Black Shock

The RockSport Remote Reservoir Black shocks are specifically made to work with MetalCloak True Dual-Rate Coils; the Digressive valving provide the best of slow and fast speed performance.

Shocks are made with 2.5 diameter, 3/16 thick wall aluminum with a huge interior for fluid to ensure they stay cool and hold up to on and off-road abuse.

RockSport Black Front Shock Length:
  • Extended Length: 28.5"
  • Collapsed Length: 17.2"
RockSport Black Rear Shock Length:
  • Extended Length: 28.5"
  • Collapsed Length: 17.2"
one black and gold Jeep suspension component, illustrating RockSport shocks built for on and off-road performance.

Outboard Stand Off Mounts

Black and gold cylinders joined, showcasing built-in offset mounts for extended travel and a convenient OE-like fit.

Shock attaches with built-in off set mounts that allow for long travel capabilities with the convenience of an OE like fitment.

Braided Hydraulic Hose

The Remote reservoir connects to the shock with a high pressure, polymer overlaid, stainless-steel braided, reinforced , Teflon inner core, hydraulic hose, with optimized flow orifices to allow unhindered shock oil flow.

Close-up of a braided hydraulic hose, featuring 'braided hydraulic hose' text, optimized for 3000psi shock oil flow.

Eight Settings Compression Adjustment

Black and gold cylinders joined, showcasing built-in offset mounts for extended travel and a convenient OE-like fit.

Large, easy to grip billet knob with laser marked numbers allow you to change the compression setting simply; choose from 8 settings that add an additional 15% compression force at each click to tune in your Gold Standard. Dial in your off-road comfort along with great daily driving performance.

Note:The Eight Setting Compression Adjustment is ONLY on the RockSport Black Adjustable Reservoir Shocks.

Optional Rear Track Bar Riser Bracket

  • CAD Formed 1/4" Steel Plate
  • Easy Bolt-On Bracket (No Welding)
  • Designed for Massive Up-Travel & Down-Travel
  • No Frame Interference
  • Gold Zinc Chromate Plate
Improve the drivability of your lifted Gladiator by leveling out the track bar on the rear of your JT Gladiator with the MetalCloak Rear Track Bar Riser Bracket
3D rendering of a gold zinced rear track bar bracket with branding, attached to the factory rear track bar bracket on the rear axle.

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 2019 + JT Gladiator
Control Arms 1 1/2" x .187 DOM Steel Tubing
1 5/8" x .25 DOM Steel Tubing
Duroflex Joint Proprietary Vulcanized Elastomer made with DuPont™ Kevlar® fiber
True Dual Rate Coils High Tensile Chrome Steel
Track Bar 4130 Solid Chromoly
Durotrak Bushing Proprietary Vulcanized Elastomer
Front Adjustable Bump Stops Thermoset Elastomer
Rear Adjustable Bump Stops Thermoset Elastomer
Steel Coating Gold Zinc


IMPORTANT NOTES



Warranty: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."

Driveshaft: Due to the long-travel MetalCloak suspensions provide, factory drive shafts will contact OEM components and wear quickly when at the extremes of articulation. An aftermarket driveshaft will be needed. (Front Auto Transmission Drive Shaft)

Shock Options: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether or not they compliment our Game-Changer system or suppress its performance.

True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.

Suspension Alignment: We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.

System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.

RockSport Black: RockSport Black Shocks are LARGE BODIED 2.5 diameter long-travel shocks. Specific brackets are provided for mounting, dependent on axle type i.e.: (wide track axle) Rubicon/Max tow or (standard axle width) Sport Model. Correct wheel backspacing IS required.

INSTALLATION



Installation Difficulty Moderate
Body Modification None
Time to Install 6 - 8 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.


Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
