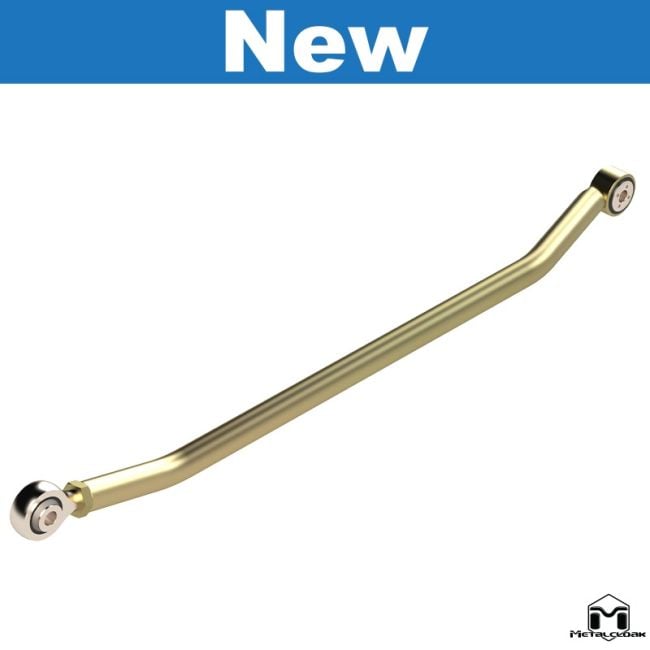

Ram 2500/3500 Front Track Bar ('14 - '24)

The Ram 2500/3500 Truck Front Heavy Duty Adjustable Track Bar is designed strong to meet the demands of on and off-road driving for your lifted Truck.

Track Bar Features:

  • Solid 4130 1.375 Chromoly
  • Durtrak™ Bushing
  • 1" Oversized Heim Joint
  • Adjustable for length
  • Precision Locking Nut
  • Gold Zinc Plated for Protection Against the Elements
  • Made in the USA
The adjustable front track bar for the Ram Truck is built with [click for more...] the Durotrak™ bushing that is mounted to the solid 1.375 OD 4130 chromoly bar. The bar is finished in gold zinc for the ultimate in durability against the elements.

The Patented Durotrak™ Bushing is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.

The Oversized 1" Heim Joint has carbon fiber-reinforced insert reducing wear and eliminates the need for lubrication. Made of strong steel, these rod ends handle higher loads over stainless steel, aluminum, and nylon rod ends. The heim joints are zinc plated to resist corrosion.

Note: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.

[click for less...]


Free Shipping all orders over $70
Price As Configured:
Special Price $351.75 Regular Price $469.00


VIDEOS

MetalCloak's Ram Suspension is the proven leader among production suspension systems.

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

Why Gold Zinc?

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.

THE TECH

Not just any track bar bushing...meet the Patented Durotrak

Gold-colored metal housing with a black elastomer with a silver metal core titled Delrin Bushing.

The Patented Durotrak ™ Bushing (metalcloakpatents.com) is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.

1" Oversized Heim Joints

The Oversized 1" Heim Joint has carbon fiber-reinforced insert reducing wear and eliminates the need for lubrication. Made of strong steel, these rod ends handle higher loads over stainless steel, aluminum, and nylon rod ends. The heim joints are zinc plated to resist corrosion.

Gold-colored metal forged rod end with a spherical bearing end, isolated on white background.

Solid Chromoly track bars keeps you... well.. on track

The Solid Chromoly track bar is uniquely designed to clear on up-travel as well as down-travel AND fit aftermarket housings. No other track bar is designed with this much clearance and up-travel in mind.
Diagram showing Durotrak Track Bar Specifications with material details.

What's In The Kit?

A close-up view of a kit's contents, showcasing various hardware and items neatly organized for easy access and use.
  • Front Track Bar

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 2014 - 2024 Ram 2500/3500
Track Bar 4130 Solid Chromoly
Steel Coating Gold Zinc


IMPORTANT NOTES



Suspension Alignment: We recommend you have a suspension specialist align your truck once a MetalCloak suspension is installed.

INSTALLATION



Installation Difficulty Easy
Body Modification None
Time to Install 1 - 2 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
