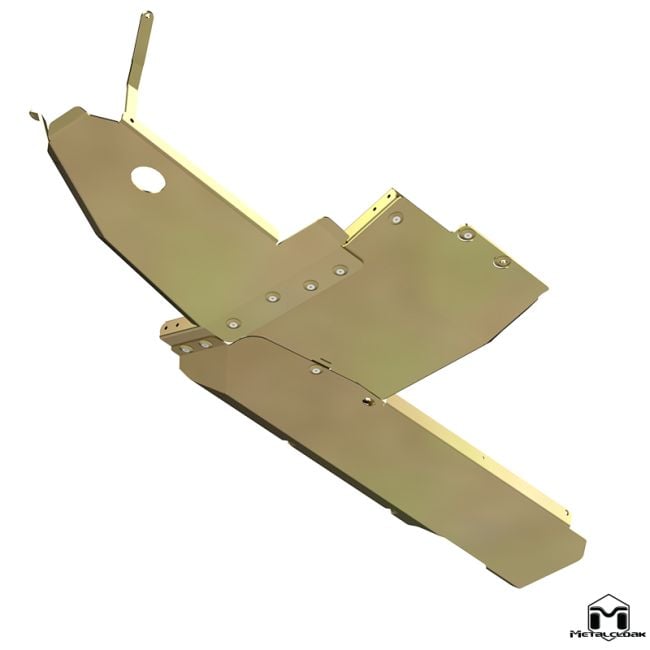

UnderCloak Integrated Armor System, JK, 4-Door

Rating:
100% of 100
Product ID
3366*

The BEST performing protection for the underside of your Jeep. Our integrated Boat-Sided Armor & Skid Plate System is the undisputed choice. Not just a couple of cut pieces of steel bolted to the bottom of a Jeep, the GOLD zinc plated UnderCloak Armor is a complete formed system that covers vulnerabilities from the front to the back.

Features Include:
  • Strong formed and welded steel
  • Boat-Sided Gas Tank Skid Protection
  • Upgraded Steel Replacement Cross Member
  • Maximum Approach Oil Pan Skid Protection
  • Boat-Sided Transfer Case Skid Protection
  • Flush mount hardware
  • Gold Zinc Chromate Coating
CAD designed, CNC formed, laser cut steel sets the benchmark for strength throughout. Engineered design with an enthusiast’s perspective; the boat side edges on the gas tank skid allow [click for more...] obstructions to glide without catching your Jeep and causing you to get stuck.

The oil pan skid ensures sharp objects have no effect and is tucked up as far as possible to ensure the best approach clearance. It also has integrated access to reach your oil filter.

The transfer case skid plate is boat sided protecting your equipment and allowing rocks and logs to slide under your Jeep without slowing you down.

The entire UnderCloak system is attached with hardware that has “skid guard washers” at all exposed mounting points. The entire surface is protected with GOLD zinc plating that not only looks great, but also forms a molecular bond to the steel protecting it from the elements even after being abused and keeps it looking good.

For the BEST performing protection for the underside of your Jeep, trust MetalCloak's UnderCloak integrated armor system.

[click for less...]


Availability
Currently Shipping in 5-10 Days
Special Sales Price:
As low as $1,331.10 Regular Price $1,566.00


VIDEOS

MetalCloak's Jeep Wrangler JK Skid Plates

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

UnderCloak Skid Plate

This belly skid is an integrated system that includes a heavy duty replacement Cross-Member, Oil Pan & Motor, Transmission & Transfer Case, and Gas Tank Skid Plates for the best protection.

Why Gold Zinc?

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.

THE TECH

JK UnderCloak Armor System

Every edge of the UnderCloak Armor System is designed for maximum approach and departure angles leaving the possibility of hanging up on obstacles on the trail a thing of the past.

GOLD Zinc For Durability...

By treating the UnderCloak Armor System with a GOLD Zinc finish, you are protected from the elements when you do scratch it up. And the surface is paintable if you want to go custom.

UnderCloak

Beefy Cross Member? Check!

Cross Members

Our upgraded 3/16" steel replacement cross member is the benchmark of strength.

CAD designed using Jeep's own Digital Files, the cross member and Under-Armor system will fit all models.

Thicker steel and additional holes for attachment points on the driver side, there is no better way to support and secure the protective plating for your Jeep.

Full Integrated Armor...

The UnderCloak Armor System Combines multiple 3/16" steel pieces to protect the underside of your Jeep JK Wrangler .This product provides protection for:

  1. Oil Pan & Motor Skid
  2. Cross Member
  3. Transmission & Transfer Case
  4. Gas Tank
UnderCloak System Exploded View

But why not recessed bolt holes?

Encapsulated Bolts

When products are new they fit just fine... now go bash them on the trail and see how they line up, they don't!

In critical areas for attachment that can get misaligned we have encapsulated the head of the bolts with skid guard washers for the bolt head that protects and affords slotted holes to ease re-installation when servicing your Jeep.

What's in the Kit?

  • Oil Pan Skid Plate
  • Replacement Cross Member
  • Transmission & Transfer Case Skid
  • Gas Tank Skid
  • Motor Skid Brackets
  • All Required Hardware
what is in the kit

TECHNICAL SPECIFICATIONS



ItemsMaterials
Compatibility 2007 - 2018 Jeep JK Wrangler
Gas Tank Skid Plate 3/16" Hot Rolled Steel
Transmission Skid Plate 3/16" Hot Rolled Steel
Cross Member 3/16" Hot Rolled Steel
Oil Pan/Motor Skid Plate 1/4" Hot Rolled Steel
Gusset Straps 3/8" Steel
Approximate Weight 190 lbs
Steel Coating Gold Zinc


INSTALLATION



Installation Difficulty Moderate
Body Modification None
Time to Install 3 - 4 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
