Hi-Steer Kit, JL Wrangler | JT Gladiator
The MetalCloak Hi-Steer kit provides a new drag-link that is placed on top of the steering knuckle and comes with a relocation bracket that raises the track bar to eliminate bump steer in your Jeep JL Wrangler and JT Gladiator that is lifted 4.5 inches or more.
Features Include:- Corrected Steering Geometry
- 3/16" Steel Relocation Bracket
- Raises Track Bar & Steering Stabilizer
- 1.375 OD .375" Wall DOM Drag Link
- Hi-Misalignment 1-Ton Rod Ends
- Zerk Fitting On Ends For Ease Of Service
- Sealed With Durable Rubber Grease Boots
- Design Limits Misalignment To Control Drag Link Flop
- Clears Aftermarket Diff Covers
- Gold Zinc Chromate Coating
- Adjustable On The Vehicle
- Made in the USA
This package comes with a strong 3/16" Hot Rolled Steel Plate CAD formed and welded track bar and stabilizer bracket that increases strength and matches the corrected geometry on the flipped drag-link to provide the best steering geometry for your lifted Jeep.
[click for less...]
VIDEOS
MetalCloak's Jeep Suspension.
Who Is MetalCloak?
MetalCloak creates Game-Changing Products for the Off Road Enthusiast.
Featured Product: Hi-Steer Kit
Game Changing Hi-Steer Kit for the JL/JT is manufactured of strong Tubular Alloy Steel providing unprecedented strength and is fitted with MetalCloak's oversized anti-flop 1-ton rod ends.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc
What is Corner Travel Index?
Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the county collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.
FMVSS 126 Compliant
MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.
THE TECH
Drag Link With Greasable 1-Ton Ends
High misalignment rod ends, double adjustable, 1.375 OD, .375 wall DOM, and clears aftermarket diff covers.
Drag Link Rod Ends
Anti Flop Feature - Precision range of movement
Massive 1-Ton Rod Ends - Provides additional strength
Specific OE Bolt Taper - Secure mount
Anti Flop Feature
Full side to side range of motion ensures bind free steering when pushing the extremes of your Jeeps travel and articulation, while a limited "front to back" range of movement is built into the rod-end and eliminates the possibility of the offset to allow the rod end to "flop".
Track Bar and Stabilizer Relocation Bracket

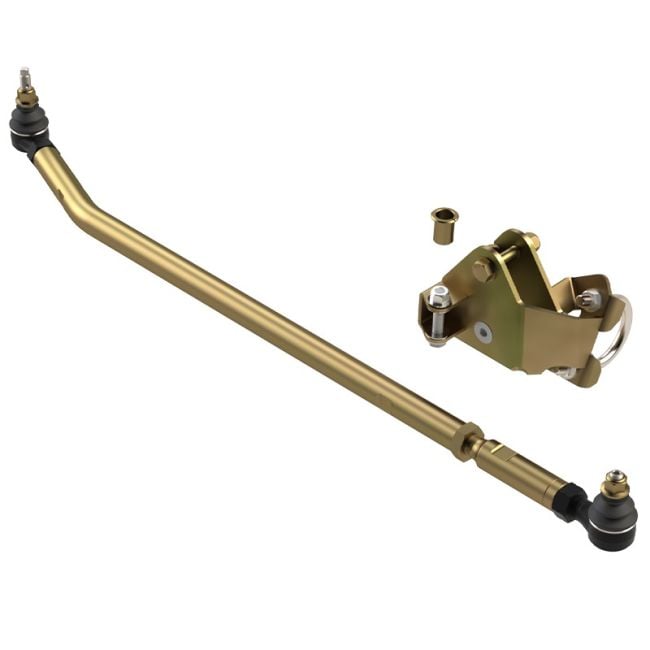

What's In The Kit?
- Drag Link
- Anti Flop Ends
- Track Bar & Stabilizer Relocation Bracket
- All Required Hardware
TECHNICAL SPECIFICATIONS
| Items | Details |
|---|---|
| Compatibility | 2018 - Current JL Wrangler | 2019 - Current JT Gladiator |
| Drag Link | 1.375 OD .375" Wall DOM |
| Drag Link Ends | Serviceable |
| Drag Link Length | 40 1/4" |
| Flip Bracket | 3/16" Hot Rolled Steel Plate |
| Steel Coating | Gold Zinc |
INSTALLATION
| Installation Difficulty | Easy |
| Body Modification | None |
| Time to Install | 1 - 2 Hour |
| Installation Instructions | Click Here to see a full list of MetalCloak Installation Instructions. |
