Jeep TJ / YJ / XJ / MJ / ZJ D30/D44 Baller Joints™, HD Ball Joints, Full Set

"BALLER" Informal adjective: extremely good, impressive or excellent.

MetalCloak's Baller Joints™ HD Ball Joints for the Jeep TJ / YJ / XJ/ MJ / ZJ D30/D44 are the ONLY Ball Joints that are comprised of top level materials with ALL the best features contained in one package. This is the last ball joint you will ever need. Upper and Lower Load Bearing, Captured, Fully Sealed, Adjustable, In-Jeep rebuildable and Made in the USA.

Features Include:
  • Load Bearing Upper and Lower Joints
  • Hardened Steel Races
  • Induction Hardened Chromoly Spindle & Ball
  • Composite Bushing for Radial Loads (Side to Side Movement)
  • Fully Sealed top and bottom O-ring AND Shaft Wiper Seals
  • Recessed Zerk Fittings for Easy Service/Grease
  • Adjustable Pre Load for Upper & Lower Joints
  • MetalCloak LockRing Wrench Included
  • In-JEEP Rebuildable Upper & Lower
  • Gold Zinc, Clear Zinc & Anodized Red Finish
  • Made in the USA
MetalCloak uses the best features and combines them with top quality materials to create a ball joint replacement set that is [click for more...] unrivaled; this is the only ball joint that is Fully Sealed, Captured, Adjustable, On-Jeep rebuildable and made in the USA. Replace your worn ball joints with the best you can get.

MetalCloak ball joints start with Chromoly Spindle & Ball with Induction Hardened surface strength that resists wear and provides a maximized bearing area to distribute force loads; the material gives superior ability to absorb energy without fracture over inferior materials.

Composite bearing sleeve slide over the spindle to handle shock loads and are the most resistant to deformation. Ball and spindle are both load bearing and utilize metal-on-metal strength captured with Tool Steel Races that eliminate memory steer and are long lasting.

Both upper and lower joints are adjustable for preload tension, have recessed zerk fittings for servicing and are sealed with multiple Buna-N Rubber O-Rings along with wiper seals on the shafts to keep contaminants out and grease in.

Aluminum lock nut and Thread on Top Cap capture the joints so there is no possibility of pulling the joints out of the C.

Anodized Red aluminum with Silver and Gold Zinc steel plated components highlight the quality and craftsmanship and are sure to let others know you appreciate American Made quality and top notch performance. The ONLY joints that are Sealed, Captured, Adjustable, and On-Jeep rebuildable; the last ball joints you will ever need.

Like other ball joints; only better.

[click for less...]


Availability
Estimated Time to Ship is 1-2 Weeks
Special Sales Price:
$699.00


VIDEOS

MetalCloak's Jeep Wrangler Accessories

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

Why Gold Zinc?

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.

Proudly Made in the USA

MetalCloak proudly manufactures products in America. Take a glimpse of Our incredible team that lives and breaths innovation and quality.

THE TECH

Upper & Lower Upgraded Ball Joints

Ball Joint Upgrade Kit

MetalCloak offers the ONLY Ball Joints that are comprised of top level materials with ALL the best features contained in one package; this is the last ball joint you will need. Upper and Lower Load Bearing, Captured, Fully Sealed, Adjustable, In-Jeep rebuildable and made in the USA.

Upper Ball Joint Upgrade

(Give it a spin to see a 360 view)

Upper Ball Joint Diagram

Load Bearing Joints

Pre-load on upper Ball Joint diverts force-loads from the lower joint and shares the load between both pivot locations.

MetalCloak Shared Force Load Ball Joints

Thread Together Captured Design

Ball Joints press in from the bottom of the C then the Aluminum lock nut and Thread on Top Cap capture the joints so there is no possibility of pulling the joints out.

Ball Joint Installs on the bottom of the C and the red cap encapsulates the top

Shaft & Ball Benefits

MetalCloak ball joints start with Chromoly Spindle & Ball with Induction Hardened surface strength that resists wear with superior ability to absorb energy without fracture over inferior materials while providing a maximized bearing area to distribute force loads.

Bearing Races

The Concave Bearing Races are high impact shock resistant machined and heat treated S-7 tool steel with maximum surface contact to spread force loads, this allows more pre-load relief while still resisting memory steer.

Lower Ball Joint Upgrade

(Give it a spin to see a 360 view)

Lower Ball Joint Diagram

Ball Joint Wrench

The included wrench is specially designed and laser cut to precisely fits the lower ball joint and allows for ease of maintenance. The wrench is made of laser cut 3/16" hot rolled steel, the tool is finished in gold zinc for a classic premium look and long lasting MetalCloak quality.

Made in America

The MetalCloak Upper and Lower Ball Joints are made right here in the USA.

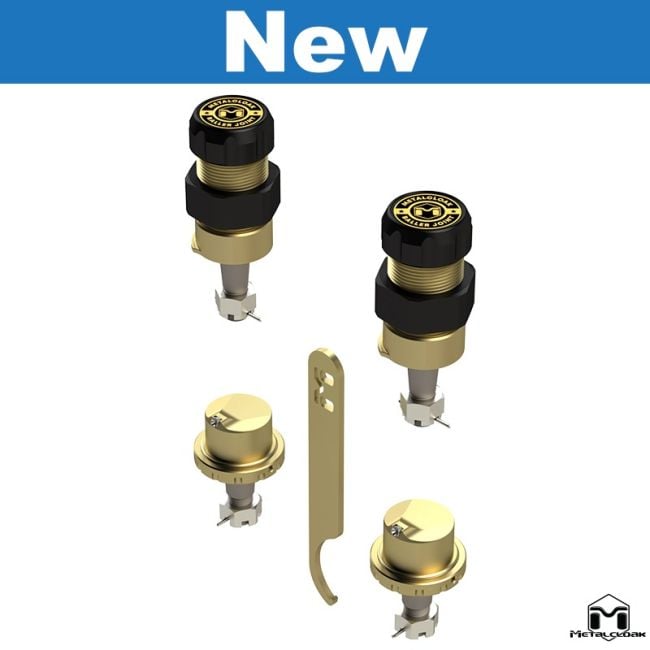

What's in the Kit?

Whats in the kit
  • Upper Ball Joints
  • Lower Ball Joints
  • Ball Joint Wrench

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 1997 - 2006 TJ/LJ Wrangler
Upper Ball Joint Cap 6061 Aluminum Hex
Upper Ball Joint Spindle Chromoly Steel
Upper Ball Joint Housing AISI 1045 Steel
Lower Ball Joint Cup AISI 1045 Steel
Lower Ball Joint Spindle Chromoly
Ball Joint Wrench 3/16" Hot Rolled Steel
Coating Gold Zinc | Clear Zinc | Red Anodize


INSTALLATION



Installation Difficulty Moderate
Body Modification None
Time to Install 4 - 5 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
