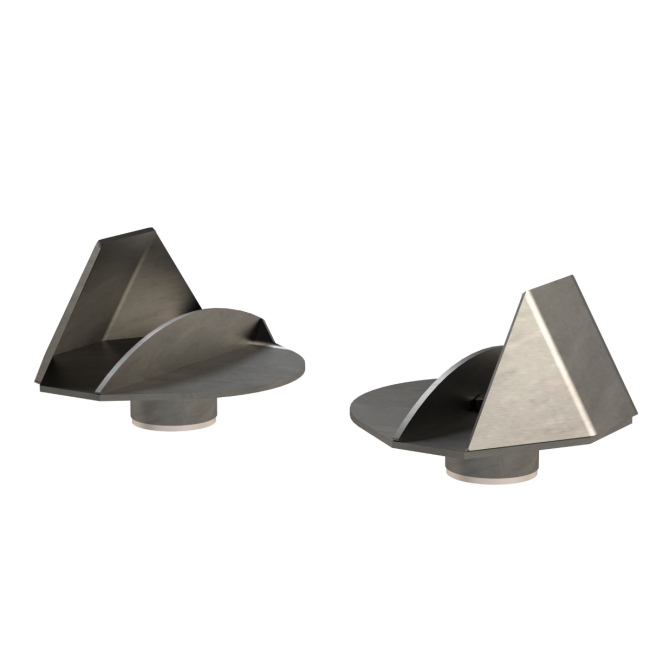

TJ Upper Rear Weld-On Spring Bucket Relocation

Rating:
99% of 100
Product ID
7109
The Jeep Wrangler TJ/LJ Weld-On Rear Coil Buckets relocate and position the coil buckets; this helps eliminate coil bowing with lifted height springs and allow the coils to perform optimally.
Features include:
  • 7GA Steel For HD Strength
  • Spring Bucket Bottom
  • Outer Spring Bucket
  • Spring Bucket Gusset
  • Spring Bucket Tube
  • Weld On Ready
  • All Required Hardware
  • Made in the USA
MetalCloak weld on brackets are built to help Jeep builders "perfect" the placement of the [click for more...] rear coil springs. The original equipment perch locations are not optimal for lifted applications and tend to bow longer coils when compressing. The weld on upper buckets will allow you to perfect the spring geometry on your TJ or LJ Jeep Wrangler.

Note: This kit requires cutting and welding.

Note: Builder Parts are intended for your own custom application. There is no implied warranty or instructions for the use of these products; if using any of the builder parts you should be confident of your mechanical skill level and know that you will use at your own risk. [click for less...]
Availability
Usually Ships in 1-2 Weeks
Price As Configured:
$109.00
Bread Checkout


VIDEOS

MetalCloak's Jeep Wrangler TJ Suspension

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

THE TECH

Weld On Rear Spring Bucket

Weld On Rear Spring Bucket

The original factory location for the upper rear spring buckets are welded on at an angle that does not work ideally with lifted height coil springs. Our weld on relocation brackets are complete replacements for the factory buckets and provide corrected geometry for lifted applications.

What's in the Kit?

  • Spring Bucket Bottom
  • Outer Spring Bucket
  • Spring Bucket Gusset
  • Spring Bucket Tube
  • All Required Hardware
What is in the Kit

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 1997 - 2006 TJ Wrangler | LJ Wrangler
Spring Bucket 7GA Hot Rolled Steel Plate
Bump Stop Support 2 1/2" OD X .12" Wall Steel Tube
Steel Coating Raw


IMPORTANT NOTES



Requirements: This kit requires cutting and welding.

Builder Parts: Builder Parts are intended for your own custom application. There is no implied warranty or instructions for the use of these products; if using any of the builder parts you should be confident of your mechanical skill level and know that you will use at your own risk.

INSTALLATION



Installation Difficulty Difficult
Body Modification Welding Required
Time to Install 1 - 2 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
