Jeep LJ Wrangler 5.5" Lock-N-Load Long Arm Radius Suspension & Lift Kit
The Jeep LJ Wrangler Lock-N-Load Long Arm Suspension provides great road manners and maximum articulation for off-road; it is the only Long Arm system that has bind-free front radius arms with the use of the Patented MetalCloak Lock-N-Load upper control arm. (metalcloakpatents.com)
Features Include:- Front Lock-N-Load™ Radius Long Arm
- High-Misalignment (NVH) Duroflex™ Control Arms
- True Dual Rate™ Coils
- Front & Rear Durotrak™ Bushing equipped track bar
- Track Bar weld on bracket
- 3 Piece High Clearance belly pan
- Adjustable bump stops
- Drop Pitman Arm
- 3 layer Stainless Steel extended Brake lines
- Specifically Tuned Shocks for True Dual Rate Coils
- Made in the USA
True Dual Rate™ Coils provides the most comfortable and stable ride over traditional single rate lift springs, and provide better load handling than the typical "progressive/multi-rate" coils. Our True Dual Rate coils are extra long in free-length to maintain contact for extreme articulation. MetalCloak has over a decade of proven dual-rate coil performance.
The Durotrak bushings reduce NVH (noise, vibration and harshness) that can be transferred to the driver and provides a smoother ride while also improving the vehicles steering input. The patented bushing is a 2-part design that can rotate 360 degrees in a vertical plane unhindered while minimizing horizontal forces to keep the Jeeps axle centered and you going in the right direction.
3 Piece Belly Pan is designed for abuse and engineered to be the best. Front and rear departure and approach angles, boat sided, solid design stiffens the chassis, clearance for stock or aftermarket transfer case, and the center section may be removed to allow servicing of protected components.
We offer a choice in shocks; run the shock set-up you choose to fit your build needs. If you have a different idea of what shocks will work best for you- go for it. MetalCloak suspensions ARE designed to optimally be used with the patented MetalCloak 6Pak™ Shocks for maximum up and down travel. Our RockSport Shocks (Exclusively at MetalCloak) provide the next longest travel you can get with the simplicity of a standard shock and share the same valving as 6Paks; this is a great option if looking for a no-maintenance option at a great price. The choice is yours to buy the suspension with or without shocks; we recommend our specifically tuned shocks but we leave the choice up to you.
Adjustable height front and rear bump stops are a MetalCloak first and allow you to adjust the travel to be tailored to the size of tire you have optioned for. Add more bump stop or remove to adjust to the clearance you need without having to remove the coils.
Every aspect of clearance has been taken into account with angles and skids built into the carefully developed components. Weld-on and bolt-on pieces transform the Jeep Wrangler into a well-mannered street driving machine and an all-out high-performance rock crawler for off-road.
MetalCloak “components” have been proven safe with the FMVSS certificate of safety configured with 37" tires, full body armor and suspension lift.
Note: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."
Note: This Kit Requires Welding at the rear axle.
Note: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
Note: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.
Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
Note: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
Note: Exhaust modifications will be required for proper fitment.
[click for less...]
VIDEOS
MetalCloak's Jeep LJ Wrangler Game-Changer Suspension is the proven leader among production suspension systems.
Who Is MetalCloak?
MetalCloak creates Game-Changing Products for the Off Road Enthusiast.
Lock-N-Load Long Arm System
The only Long Arm system that utilizes the Lock-n-load, for bind-free front radius arms
Duroflex 101
This short video covers what you need to know about the basics of the Duroflex Joint. How it should be used and what to expect when using it.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc
Duroflex Joint Maintenance
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Joint Maintenance
Duroflex Joint Revealed
The MetalCloak Duroflex Joint gives better dampening properties over OEM style rubber Clevite Joints and provides more misalignment than “other” inferior Flex Joints.
Vibration Dampening
We tested our Duroflex Joint using a "Shaker Table" and seismometer app to show how much Vibration Dampening the Duroflex Joint gives you compared to other industry leading joints.
A Comparison of Flex
Comparing the Flex of the Duroflex Joint with that of the Johnny Joint, the Teraflex Monster and the typical Clevite.
Lock-N-Load
"Typical" Radius Arm systems inherently bind causing premature bushing wear and excessive stress on bracketry. The Lock-N-Load solves that problem.
Coil Springs 101
This short video covers all you need to know about the basics of how typical Coil Springs work compared to MetalCloak's True Dual Rate Coils.
Durotrak™ Bushing
Eliminate squeaks and clunks in your steering with the technology of MetalCloak’s Durotrak™ bushings; exclusively found in MetalCloak track bars.
MetalCloak 6Pak
MetalCloak's Floating Shock Body Technology (FST) provides a game-changing platform featuring parallel shafts extending from a floating body, centralized by dual opposing reservoirs.
Building a 6Pak
Each 6Pak shock is hand built to exacting standards and then Dyno tested here at MetalCloak in Sacramento California.
What is Corner Travel Index?
Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the county collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.
FMVSS 126 Compliant
MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.
THE TECH

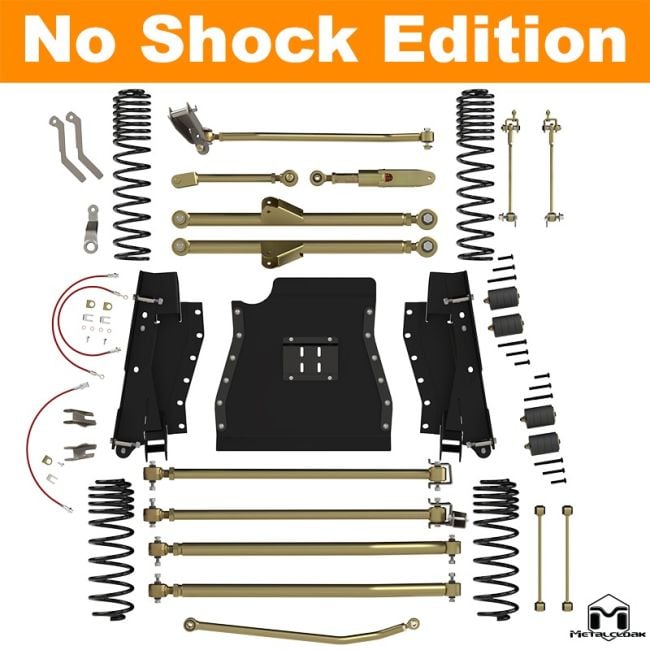

What's In The Kit?
- Front Lower Long Arms
- Lock-N-Load
- Front Upper Radius Control Arm
- Rear Long Arms
- 3 Piece Belly Pan Skid
- Front & Rear True Dual Rate™ Coils
- Front & Rear Durotrak™ Track Bars
- Front Weld On Track Bar Bracket
- Front & Rear Adjustable Bump Stops
- 3in Pitman Arm
- Front & Rear Extended Brake Lines
- Front & Rear Sway Bar Links
If you Choose...
- Choose My Own - Shock Mounts, No Shocks
- RockSport - Get RockSport Shocks & Shock Mounts
- 6Pak Shocks - Get 6Paks & Mounting Hardware
IT ALL STARTS WITH THE BUSHINGS
The Patented Duroflex™ Joint (metalcloakpatents.com) is the key to getting the greatest flex in a bolt-on suspension kit. Period.
MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.
Now with Kevlar!
DuPont™ Kevlar® Fiber is now compounded in the proprietary elastomer of the Duroflex Bushing, bringing even more strength, durability and performance.
Kevlar® is a synthetic fiber with extremely high tensile strength to weight ratio…five times stronger than steel and commonly used in bullet proof armor applications.
Duroflex Bushings w/Kevlar® can be identified by the MetalCloak “M” located on the outer surface.
The Duroflex Joint Provides The Best Ride. Period.
Made of a Proprietary Elastomer Compound, the High Vibration Dampening and Self-Centering characteristics of the Duroflex Joint means you will always get...
- The best ride quality
- No binding of your control arms.
- None of the micro-wear that DESTROYS Flex Joints
High Misalignment...
By adapting the High Transverse Flex characteristics of a typical Flex Joint, the Duroflex Joint gives you...
- Over 34° of Misalignment
- Over 68° per Control Arm
Absorbs Micro-Movements...
Because the Duroflex Bushing absorbs the millions of Rotational Micro-Movements found in your daily driving, you get...
- Improved Ride Quality
- None of the micro-wear that DESTROYS Flex Joints
True Bearing Surface...
The outer surface of the Duroflex Bushing acts as a bearing, breaking free when called for, giving you...
- Maximum Rotation & Articulation
- No "Binding Up" of the Control Arms
Low Maintenance & Rebuildable...
Unlike typical Flex Joints, the Duroflex does not require replacing key parts every year like others...
But, when you do need to rebuild it, it is MetalCloak Easy!
Just pull out the Duroflex Bushing, clean it up, add some new Teflon impregnated, synthetic silicone grease. Reassemble.
Done.
Forged for Strength...
The adjustable threaded ends are Forged providing a 37% higher fatigue strength over inferior cast parts, this EXTRA rock bashing strength will hold up to whatever you throw at em.
Control Arm Duroflex Joint Alignment...
At MetalCloak we take the care to build every product right.
Most manufacturers build their control arms misaligned from center. Why? It simply costs less to do so.
By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.
It makes them easier to install, too!
Lower Front Long Arms
Both the Front Radius Arms and the Lower Rear Hi-Clearance Arms are manufactured for the ultimate in strength and versatility.
- 2" x .25" wall DOM
- Signature Gold Zinc Chromate
- Oversized Duroflex Joints at the Belly Pan
Lock-N-Load
MetalCloak's Lock-N-Load Radius Arm system removes the most common problem that causes more long term damage to bushings and axles... BIND.
The Lock-N-Load extends at full droop, compressing one spring and extending the other.
At full stuff, the Lock-N-Load compresses. There is always compression and resistance.
How Does The Lock-N-Load Work?
The Lock-N-Load performs as a standard "solid control arm" when locked; when unlocked "or loaded" it allows for the axle to roll forward or backward without reliving stress on the bushings and brackets that will provide a longer service life AND directly equate to better articulation that keeps tires on the ground.
The lock-n-load is designed to lock or unlock the spring without changing the length of the control arm; the unique and patented design provides stability on the road when locked out and increased suspension mobility when off road.
The 4-Link Rear Perfected
While the Radius Arm front was ideal, we realized the space in the rear allows for a properly engineered 4-Link.
Choosing the 4-link rear control arm design provides added torque strength support for the main drive axle and provides a fantastic overall ride quality.
Our design eliminated the typical unsteady "Long Arm Roll" felt on a lifted TJ/LJ while cornering - and that's without running a rear sway bar!
Control Arm Specs
- CNC Machined
- 1/4" Wall DOM Steel
- 2.0" OD
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- CNC Machined
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint
- CNC Machined
- 3/16" Wall DOM Steel
- 1.25" OD
- 1/4" Steel Clevis
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint
- CNC Machined
- 1/4" Wall DOM Steel
- 2.0" OD
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- Lengthened 5/8" for Best Axle Position
- CNC Formed
- 3/16" Wall DOM Steel
- 1.5" OD
- Precision Locking Nut
- Designed for Oversize Tire Clearance
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- Lengthened for Best Axle Position
Degrees of Articulation
MetalCloak's Duroflex Joint provides 28˚ more articulation and flex than typical control arms! (Learn More About Duroflex Control Arms)
What are True Dual Rate Coils?
MetalCloak True Dual Rate™ Coils have one of the longest free length in the industry for greater articulation without sacrificing the OEM ride quality.
Without the advantage of the Dual Rate Design, the required Spring Rate would be too low and "squishy" -- just loading your Jeep up with supplies would affect ride height and quality. (Learn More About True Dual Rate Coils)
Not just any track bar bushing...meet the Patented Durotrak
The Patented Durotrak™ Bushing (metalcloakpatents.com) is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input. (Learn More About Durotrak Track Bars Front / Rear)
Solid Chromoly front track bar keeps you... well.. on track
Formed for ultimate Up-Travel & Down-Travel the TJ/LJ Wrangler Front Track Bar gives strength, clearance, ultimate clearance and is equipped with our Patented Durotrak bushing for improved durability and ride stability.
Rear Track Bar Designed For Ultimate strength & Clearance
The Solid Chromoly track bar is uniquely designed to clear on up-travel as well as down-travel.
Fully Integrated 3 Piece Belly Pan
- 1/4" Plate Steel Mounting Points
- Stiffens Chassis
- 3 Piece Belly Pan Provides Easy Access to Transmission & Transfer Case
- Boat-Sided Style 1/4" Steel Plate Angled for Approach & Departure
- Front & Rear Approach and Departure Ramps Designed to Slide Up & Over the Rocks
- Stock or Aftermarket Transfer Cases OK
Ultimate In Strength
1/4" Plate Steel provides the Ultimate in Strength while providing bolt-on Control Arm Geometry.
3 Piece Belly Pan Ride Height
The MetalCloak 3 piece belly pan fits aftermarket transfer cases (*i.e. Atlas) with no floor modifications or body lift. MetalCloak's 3 piece belly pan is as tall as the factory belly pan allowing you to lose no ground clearance.
Stop The Guess Work. Bump It Up!
- Adjust from 1" - 4" Without Removing Coils
- Perfect Height Regardless of Tire Size
- Thermoset Elastomer Dampens Impact
- Additional Pads Available on Request
3" Drop Pitman Arm
- Lowers the drag link angle
- Improves the steering geometry
- Corrects bump steer
- Made of Forged Steel for strength and reliability
Replacement Brake Lines, 24"
From the Teflon Inner Core, to the Stainless Steel Braid and Poly Safety Coat, the MetalCloak replacement Brake Lines are designed to meet your needs and exceed your expectations.
Longer then typical brake lines of similar lift heights because of our additional clearance and travel (Learn More About Brake Lines).
Choose Your Shocks
The 6Pak™ Shock
The design of the 6Pak didn't just revolutionize shocks, it changed the suspension game forever.The Patented MetalCloak 6Pak™ (metalcloakpatents.com) provides the longest shock travel relative to a compressed length for any off-road shock ever built in history, period.
MetalCloak's Long-Travel Shock Technology provides a game-changing platform featuring parallel shafts extending from a floating body, centralized by dual opposing reservoirs; this revolutionary feature allows for twice the usual stroke over typical industry shocks.
Now the problems of low-hanging shocks or limited travel because of your shock body are fully and completely eliminated.
The shock is no longer the limiting factor in your build.
(Learn More About 6Pak Shocks)
The RockSport RED Long Travel Shock
It’s not just a shock, it is a piece in a tuned system. This is not a typical bolt on shock. RockSport RED shocks are valved and specifically tuned to work with MetalCloak True Dual-Rate Coils.MetalCloak has refined the RockSport RED LT Shocks compression and dampening to provide stable, yet compliant manners for daily driving and also in situations where Long Travel articulation is needed to keep the tires planted on the ground. (Learn More About RockSport RED Shocks Front / Rear)
RockSport RED Front Shock Length:
- Extended Length: 27.2"
- Collapsed Length: 16.2"
- Extended Length: 24.5"
- Collapsed Length: 14.5"
TECHNICAL SPECIFICATIONS
| Items | Details |
|---|---|
| Compatibility | 2003 - 2006 Jeep LJ Wrangler |
| Long Arm Control Arms | 2.0" x .25" DOM Steel Tubing |
| Lock-N-Load | 2 1/2" x .120" Steel Tubing |
| Duroflex Joint | Proprietary Vulcanized Elastomer made with DuPont™ Kevlar® fiber |
| Belly Skid | 1/4" Hot Rolled Steel Plate |
| Coils | High Tensile Chrome Steel |
| Track Bar | 4130 Solid Chromoly |
| Track Bar Bracket | 1/4" Hot Rolled Steel |
| Durotrak Bushing | Proprietary Vulcanized Elastomer |
| Adjustable Bump Stops | Thermoset Elastomer |
| Pitman Arm | Forged Steel |
| Brake Lines | Braided Stainless Hose |
| Shock Mounts | 3/16" Hot Rolled Steel Plate |
| Steel Coating | Gold Zinc |
IMPORTANT NOTES
Warranty: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."
Welding: This Kit Requires Welding at the Rear Axle.
Shock Options: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether or not they compliment our Lock-N-Load system or suppress its performance.
True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
Suspension Alignment: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.
System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
Exhaust: Exhaust modifications will be required for proper fitment.
INSTALLATION
| Installation Difficulty | Difficult - Licensed Installer Recommended |
| Body Modification | Cutting & Welding |
| Time to Install | 16 - 18 Hours |
| Installation Instructions | Click Here to see a full list of MetalCloak Installation Instructions. |
