JT Gladiator 2.5" Leveling Suspension & Lift Kit
Level your JT Gladiator Rubicon utilizing MetalCloak's top of the line components. This entry level system allows you to build up your Jeep Truck suspension over time as more performance is desired. Featuring patented technology available nowhere else.Features Include:
- Duroflex™ Joints enhanced with Kevlar
- True Dual Rate™ Coils
- Durotrak™ equipped front track bar
- Height adjustable bump stops
- Specifically tuned shocks for True Dual Rate Coils
- Designed for maximum UP and DOWN travel
True Dual Rate™ Coils provides the most comfortable and stable ride over traditional single rate lift springs, and provide better load handling than the typical "progressive/multi-rate" coils. Our True Dual Rate coils are extra long in free-length to maintain contact for extreme articulation. MetalCloak has over a decade of proven dual-rate coil performance.
The Durotrak bushings reduce NVH (noise, vibration and harshness) that can be transferred to the driver and provides a smoother ride while also improving the vehicles steering input. The patented bushing is a 2-part design that can rotate 360 degrees in a vertical plane unhindered while minimizing horizontal forces to keep the Jeeps axle centered and you going in the right direction.
We offer a choice in shocks; run the stock shocks or choose whatever fits your builds needs. MetalCloak leveling systems ARE designed to optimally be used with our proprietary shock valving. RockSport Shocks (Exclusively at MetalCloak) provide long travel at a modest price and give the simplicity of a standard shock with the same valving as 6Paks; this is a great option if looking for a no-maintenance option at a great price. The choice is yours to buy the suspension with or without shocks; we recommend our specifically tuned shocks but we leave the choice up to you.
Adjustable height front bump stops are a MetalCloak first and allow you to adjust the travel to be tailored to the size of tire you have optioned for. Add more bump stop or remove to adjust to the clearance you need without having to remove the coils.
All MetalCloak suspension components, are designed for maximum up AND down travel while providing the best suspension geometry available to deliver the performance you demand.
MetalCloak “components” have been proven safe with the FMVSS certificate of safety configured with 37inch tires, full body armor and suspension lift.
Note: Does not fit a Mojave edition JT Gladiator.
Note: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether they complement our Game-Changer system or suppress its performance.
Note: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
Note: We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.
Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
Note: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
[click for less...]
MetalCloak's JT Gladiator Suspension is the proven leader among production suspension systems.
Who Is MetalCloak?
MetalCloak creates Game-Changing Products for the Off Road Enthusiast.
This short video covers what you need to know about the basics of the Duroflex Joint. How it should be used and what to expect when using it.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc
Duroflex Joint Maintenance
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Joint Maintenance
Duroflex Joint Revealed
The MetalCloak Duroflex Joint takes the best qualities of OEM style Clevite Joint and the popular Johnny Joint style Flex Joint and combines them.
We tested our Duroflex Joint using a "Shaker Table" and seismometer app to show how much Vibration Dampening the Duroflex Joint gives you compared to other industry leading joints.
A Comparison of Flex
Comparing the Flex of the Duroflex Joint with that of the Johnny Joint, the Teraflex Monster and the typical Clevite.
Coil Springs 101
This short video covers all you need to know about the basics of how typical Coil Springs work compared to MetalCloak's True Dual Rate Coils.
Eliminate squeaks and clunks in your steering with the technology of MetalCloak’s Durotrak™ bushings; exclusively found in MetalCloak track bars.
FMVSS 126 Compliant
MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.

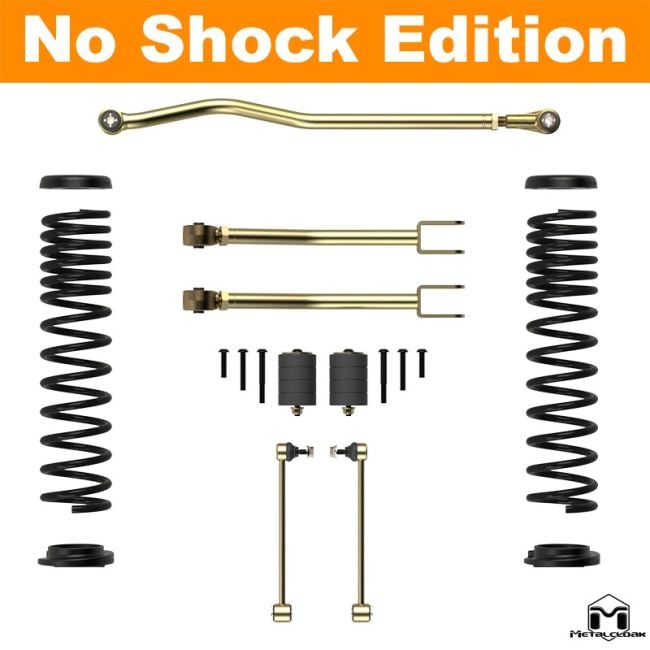

What's In The Kit?
- Upper Front Duroflex Control Arms
- Front True Dual Rate™ Coils
- Front Durotrak™ Track Bar
- Front Adjustable Bump Stops
- Front Sway Bar Links
- Shock Mounts
If you Choose...
- Choose My Own - Get Outboard Shock Mounts, No Shocks
- Mojave Stock Shocks - Get Outboard Shock Mounts, Upper Front Shock Mounts, No Shocks
- Use Stock Shocks - Get Outboard Shock Mounts, Shock Brackets, No Shocks
- RockSports - Get RockSport Shocks & Outboard Shock Mounts
IT ALL STARTS WITH THE BUSHINGS
The Patented Duroflex™ Joint (metalcloakpatents.com) is the key to getting the greatest flex in a bolt-on suspension kit. Period.
MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.
Now with Kevlar!
DuPont™ Kevlar® Fiber is now compounded in the proprietary elastomer of the Duroflex Bushing, bringing even more strength, durability and performance.
Kevlar® is a synthetic fiber with extremely high tensile strength to weight ratio…five times stronger than steel and commonly used in bullet proof armor applications.
Duroflex Bushings w/Kevlar® can be identified by the MetalCloak “M” located on the outer surface.
Control Arm Duroflex Joint Alignment...
At MetalCloak we take the care to build every product right.
Most manufacturers build their control arms misaligned from center. Why? It simply costs less to do so.
By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.
It makes them easier to install, too!
Threaded Forged Ends
Forged for Strength...
The adjustable threaded sides are Forged that give a 37% higher fatigue strength over inferior cast parts, this EXTRA rock bashing strength will hold up to whatever you throw at em.
Control Arm Specs
- CNC Machined
- 3/16" Wall DOM Steel
- 1.25" OD
- 3/16" Steel Clevis
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint
- Threaded Forged Ends
Degrees of Articulation
MetalCloak's Duroflex Joint provides 28˚ more articulation and flex than typical control arms!
What are True Dual Rate Coils?
MetalCloak True Dual Rate™ Coils have one of the longest free length in the industry for greater articulation without sacrificing the OEM ride quality.
Without the advantage of the Dual Rate Design, the required Spring Rate would be too low and "squishy" -- just loading your Jeep up with supplies would affect ride height and quality.
Front True Dual Rate™ Coils
- 2 Hi Tensile Chrome Silicon Steel Springs
- Free Length: 21.75"
- Coating: Black Powder Coating
Not just any track bar bushing...meet the Patented Durotrak
The Patented Durotrak ™ Bushing (metalcloakpatents.com) is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.
Solid Chromoly front track bar keeps you... well.. on track
Formed for ultimate Up-Travel & Down-Travel the Front Track Bar gives unprecedented strength, clearance, and improved ride stability.
Stop The Guess Work. Bump It Up!
- Adjust from 1" - 4" Without Removing Coils
- Perfect Height Regardless of Tire Size
- Thermoset Elastomer Dampens Impact
- Additional Pads Available on Request
Outboard Shock Mount
- Engineered to move the lower shock mounts away from the Jeep frame rails increasing clearance for the shock body at the extremes of articulation.
- All Grade 8 hardware provided.
- Treated with Gold Zinc Chromate for the ultimate in defense against the elements.
- Manufactured from laser cut 3/16" steel and CNC bent for superior strength and exact fitment.
IMPORTANT NOTE: If using OE wheels 2" spacers will be needed to give proper clearance. These mounts are intended for use for wheels with 4.5" of backspacing or less or an equivalent of a 2" spacer on factory wheels.
Choose Your Shocks
The RockSport ShockIt’s not just a shock, it is a piece in a tuned system. This is not a typical bolt on shock. RockSport shocks are valved and specifically tuned to work with MetalCloak True Dual-Rate Coils.
MetalCloak has refined the RockSport Shocks compression and dampening to provide stable, yet compliant manners for daily driving and also in situations where Long Travel articulation is needed to keep the tires planted on the ground.
RockSport Front Shock Length:
- Extended Length: 30.0"
- Collapsed Length: 17.7"
|Compatibility||2019 + JT Gladiator|
|Control Arms||1 1/2" .187 DOM Steel Tubing|
|Duroflex Joint||Proprietary Vulcanized Elastomer made with DuPont™ Kevlar® fiber|
|True Dual Rate Coils||High Tensile Chrome Steel|
|Durotrack Bushing||Proprietary Vulcanized Elastomer|
|Front Adjustable Bump Stops||Thermoset Elastomer|
|Steel Coating||Gold Zinc|
Gladiator Model: Does not fit a Mojave edition JT Gladiator.
Shock Options: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether or not they compliment our Game-Changer system or suppress its performance.
True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
Suspension Alignment: We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.
System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
|Time to Install||2 - 4 Hours|
|Installation Instructions||Click Here to see a full list of MetalCloak Installation Instructions.|
