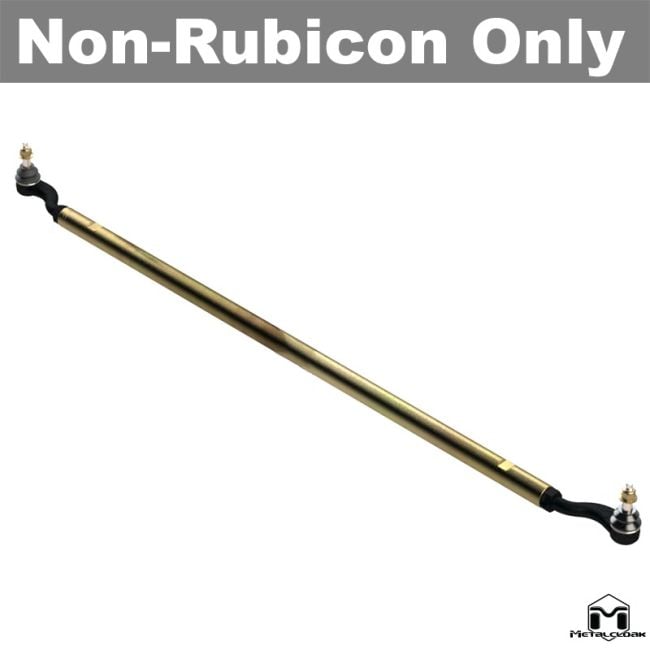

HD Chromoly Dog-Legged Tie Rod, JL Wrangler/JT Gladiator, Sport
THIS IS ONLY FOR THE NON-RUBICON EDITION!
This chromoly dog-legged tie rod for the non-Rubicon JL Wrangler & JT Gladiator is strength with style for your vulnerable steering system.
Features Include:
- Tubular 1.625" OD .375" Wall 4130 Chromoly CDS
- Gold Zinc Chromate Finish
- 1-Ton Forged Heat-Treated Offset Dog-Leg Rod Ends
- Rod End Design Controls Tie Rod Flop
- OE Taper Pin and Lock Nut For Exact Fitment
- Sealed With Durable Rubber Grease Boots
- Adjustable While Installed
- Made In The USA
Note: Minimum 2" lift required.
Note: Does NOT work with stock wheel backspacing.
Note: MetalCloak highly recommends using anti-seize on all billet tie rod mount bolts.
Note: Also fits international Rubicon models.
[click for less...]
VIDEOS
MetalCloak's Jeep JL Wrangler & JT Gladiator Suspension components get you what you need
Who Is MetalCloak?
MetalCloak creates game-changing products for the off-road enthusiast.
Dog-Legged Tie Rod
This chromoly dog-legged tie rod for the Jeep JL Wrangler & JT Gladiator adds strength to replace the vulnerable stock tie rod.
What is Corner Travel Index?
Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the country collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.
FMVSS 126 Compliant
MetalCloak not only has the best off-road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.
THE TECH
Chromoly Steel For Added Strength
Making a tie rod is easy, but we don't do easy; we chose Normalized 4130 Chromoly 1.625" OD .375" wall tube that can take a beating without breaking (97,200 pounds per square inch).
Dog-Leg Tie Rod Ends
Anti-Flop Feature - Precision range of movement
Maximum Tire/Wheel Clearance - Correct steering radius
Massive 1-Ton Rod Ends - Provides additional strength
Oversized 1" Threads - More material at critical area
Oversized, Forged, & Heat-Treated Housing - Exclusive
Anti-Flop Feature
This specially designed rod end has been engineered just for the JL Wrangler & JT Gladiator steering.
Full side-to-side range of motion ensures bind-free steering when pushing the extremes of your Jeep's travel and articulation, while a limited "front to back" range of movement is built into the rod end and eliminates the possibility of the offset to allow the tie rod to "flop".
What's in the Kit?
- Tie Rod
- Dog-Leg Anti-Flop Tie Rod Ends
- All Required Hardware
TECHNICAL SPECIFICATIONS
| Items | Details |
|---|---|
| Compatibility | 2018+ JL Wrangler Non-Rubicon & 2020+ JT Gladiator Non-Rubicon (Minimum 2" Lift Required) |
| Tie Rod | 1.625" OD .375" Wall 4130 Chromoly CDS |
| Tie Rod Length | 59-5/16" |
| Coating | Gold Zinc |
IMPORTANT NOTES
Requirements: Minimum 2" lift required.
Backspacing: Does NOT work with stock wheel backspacing.
Billet Mount: MetalCloak highly recommends using anti-seize on all billet tie rod mount bolts.
International: Also fits international Rubicon models.
INSTALLATION
| Difficulty | Easy |
| Body Modification | None |
| Time to Install | 30 Minutes |
| Installation Instructions | View Non-Rubicon JL Wrangler & JT Gladiator Dog-Leg Tie Rod installation instructions. |
