4-Door Rocklander Sky One-Touch Top Rack System | JL Wrangler

Rating:
90% of 100
Product ID
R74005*

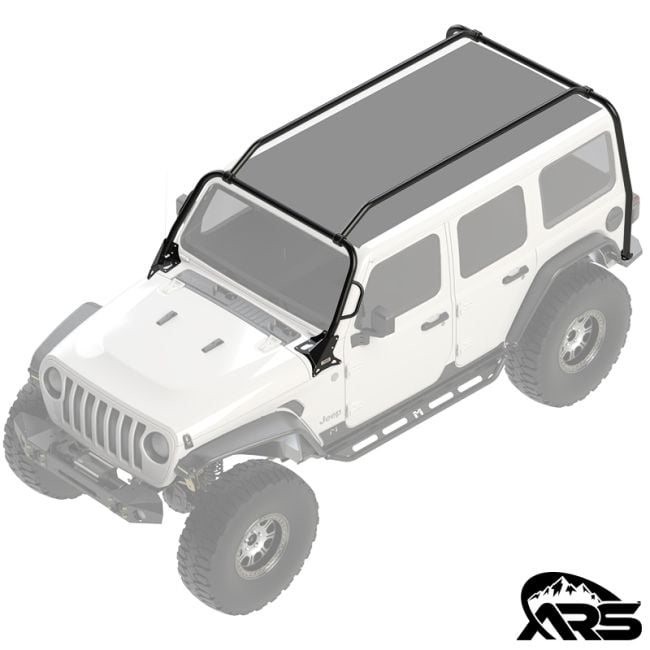

The 4-Door Rocklander Sky One-Touch Top Rack System is the most capable carrying system available for the Jeep JL Wrangler. It features the highest payload, strength, rigidity, and stability of any rack on the market, and allows for full use of your Sky One-Touch Top.

Features Include:
  • Allows for Sky One-Touch Top Use
  • Bolts Directly to Factory Locations
  • Heavy Duty 2" Tubular Exo-Skeleton Rack System
  • 850lbs (Static) & 375lbs (Dynamic) Load Capacity
[click for more...]
  • One Piece Front Hoop Design
  • Front Hoop Weld on Grab Handles
  • Front Steel Pier Plates
  • Integrated Fastener System
  • Three Piece Design Rear Hoop
  • Rear Steel Flexural Footings
  • Two Piece NVH Hi-Durometer Urethane Bushings
  • 3/16" Steel Base Anchors
  • 4-Door Sky One-Touch Top Roof Trusses
  • CNC Clamps with Threaded Bolt Holes
  • Specific Engineered Tube Bend for a Stronger Front Support Structure
  • Industrial Grade Corrosion Resistant Hardware
  • Protection for Windshield Assembly
  • Protection for the Rear Corners
  • Accessories Mount Directly to Rack System
  • Front Hoop Mount Ready for ARS Kat Walk
  • Finished in Black Texture Powdercoat
  • Made in the USA
ARS has created a structure to safely handle additional cargo loads for your Jeep. Our rack systems are built on a unique floating foundation that separates and distributes weight to the body and to the frame maximizing structure and support. Utilizing a matrix of 3/16" steel pier-plates, base anchor footings, and 2" diameter steel columns, our system interconnects a framework that allow for "seismic" forces to be handled readily with its unique mechanical advantages.

ARS is the only rack that features a "load bearing" front hoop without the need for additional support; this strength is the bedrock that allows our rack systems to withstand fore and aft thrust, side load forces, and prevents horizontal racking (the twisting/flexing out of a rigid or supportive state). The front hoop columns are attached with 3/16" steel pier-plates that connect to 16 strong mounting points along with 2 additional fasteners at the front assembly of the Jeep body, then the pier plates are discretely covered with the factory cowl for a clean OE look.

The rear hoop columns are attached with our 3/16" steel base anchors and flexural footings, that create an understructure connecting the frame of the Jeep to the hoop for the strongest attachment point. The flexural footings coupled to our 2” OD steel support columns through 2-part urethane bushings, providing flexural rigidity between the frame and body mounts that allow the front and rear foundations to work in unison to support the cargo structure.

The Sky One-Touch Top Rocklander roof trusses allow for the usage of your Sky One-Touch Top usage and are made of strong 2” diameter, .120 steel tube and have engineered front bends creating a stronger and sturdier support when out on the trails or on the road. This Rack system boasts a 375lbs (dynamic) and 850lbs (static) weight capacity.

The trusses are equipped with CNC steel billet clamps that are secured to the front and rear hoop mounts with corrosion resistant hardware. The trusses are finished in a durable black texture powdercoat to protect them against the elements and to keep them looking good.

Note: Adding racks and/or accessories to the exterior of your vehicle may increase wind noise especially on models with soft-tops, Sky One-Touch Tops, etc.

Note: Does NOT fit on a JL 392 due to a taller cowl/hood.

Note: Does NOT fit on a JL 4XE due to the charging port location.

Note: The front hoop Kat Walk (R75080) is sold separately.

Note: The pod light mounts (R75011 / R75012) are sold separately.

Note: The Roof Pak Basket will NOT work on Sky One-Touch Top equipped Jeeps.

[click for less...]


Availability
Currently Shipping in 2-3 Weeks
Price As Configured:

$2,135.00

Customize 4-Door Rocklander Sky One-Touch Top Rack System | JL Wrangler
[what's this?]
Base Options   + $2,076.00

* Required Fields



VIDEOS

Jeep Adventure Rack Systems

Who is ARS?

ARS is dedicated to overland cargo management for Jeeps and other adventure vehicles. All of our products are made right here in the USA

JL Adventure Rack Systems

The ARS 4-Door Rocklander Sky One-Touch Top Rack System for the JL Wrangler Features the best in strength, rigidity, and stability all in one package.

Black Powdercoat

MetalCloak's Premium Black Textured Powdercoat process is detailed in this updated video.

THE TECH

JL Wrangler 4-Door Rocklander Sky One-Touch Top Rack System

ARS has created a structure to safely handle additional cargo loads for your Jeep. Our rack systems are built on a unique floating foundation that separates and distributes weight to the body AND to the frame maximizing structure and support.

JL Wrangler 4-Door Rocklander Sky One-Touch Top Rack System

Rocklander Front Hoop

ARS Rocklander Front Hoop

ARS is the only rack that features a "load bearing" front hoop without the need for additional support; this strength is the bedrock that allows our rack systems to withstand fore and aft thrust, side load forces, and prevents horizontal racking (the twisting/flexing out of a rigid or supportive state).

Integrated Weld-On Handles

The Rocklander Front Hoop has welded-on 1" x .120 wall steel tube handles that let you get up and into your Jeep and also provide easy access to the optional Kat Walk accessory or roof rack.

JL Wrangler Front Hoop Integrated Weld-On Handles

Steel Pier Plates

JL Wrangler Front Hoop Steel Pier Plates

The Front Hoop Columns are attached with 3/16" Steel Pier-Plates that connect to 16 strong mounting points along with 2 additional fasteners at the front assembly of the Jeep body, then the pier plates are discretely covered with the factory cowl for a clean OE look.

Rocklander Rear Hoop

The Rocklander Rear Hoop fits a 2-Door or 4-Door JL Wrangler. The rear hoop is made of strong 2" x .120 wall steel tube and mounts directly to the frame while adding protection for the rear corners of the Jeep JL Wrangler. The rear hoop is black powdercoated to protect the hoop from the elements and does not require any drilling or body modifications.

ARS JL Wrangler Rocklander Rear Hoop

Billet Shelf-Lock

Billet Shelf-Lock connections allow for ease of installation and increased functionality.

The rear hoop connects the rear uprights together with solid billet, overlapping Shelf-Locks and secure into place using industrial grade corrosion resistant hardware.

The Billet Shelf Lock connectors are fully welded into the tubes for incredible strength and help facilitate ease of assembly.

ARS Rack System Tube Size Billet Shelf Lock Locations

Rear Hoop Adapter Brackets

The Rear hoop columns are attached with our 3/16" steel base anchors and Flexural Footings, that create an understructure connecting the frame of the Jeep to the hoop for the strongest attachment point.

ARS JL Wrangler Rocklander Rear Hoop Adapter Brackets

Noise Vibration Dampening Bushings

JL Wrangler Rear Hoop Integration

The Flexural Footings coupled to our 2”OD steel support columns through 2-part Urethane bushings, providing flexural rigidity between the frame and body mounts that allow the front and rear foundations to work in unison to support the cargo structure.

4-Door Roof Trusses

The Jeep Wrangler JLU Sky One-Touch Top Rocklander Roof Trusses are a critical part of the ARS cargo system. The roof trusses are made solid with 2"OD steel tubing that connect with the front and rear hoop columns with additional height for the Sky One-Touch Top, and create the most stable cargo management system available. ARS Roof Trusses are finished in a durable black texture powder coat that protect against the elements and to keep them looking good.

JL Wrangler 4-Door Sky One-Touch Top Roof Trusses

Engineered Bend

ARS JL Wrangler Rocklander Roof Trusses Engineered Bend

To maximize load strength, ARS Roof Trusses are designed with a forward slope that reduce push/load forces on the front body mounted hoop columns.

CNC Billet Clamps

The strong 2” OD steel tube Roof trusses are complimented with huge CNC steel billet clamps that attach firmly with a combined clamping force of over 3,200lbs to the front and Rear hoop columns.

CNC Billet Clamps

Tube Diameter - Size Matters

ARS uses 2" diameter tube for maximum strength. Just a simple visual comparison shows the material used for ARS components far surpasses inferior brands.

ARS Rack System Tube Size Typical Tube Rack Tube Size Gobi

Weight Capacity

The JL Wrangler ARS Rack will support up to 350lbs of dynamic weight and over 850lbs quasi static loads.

ARS JL Wrangler Rack Dynamic Weight ARS JL Wrangler Rack Static Weight

Optional MetalCloak Rear Bumper & Bracket Upgrade Kit

The MetalCloak Bumper for the Jeep Wrangler is a perfect mix of function and utility. The strong 3/16" structure is built tough and has a low profile, close fitting design that allows for increased departure clearance without skimping on utility features like welded recovery points, works with factory tow hitch, protected electrical outlet, and modular wrap around corner end caps. The MetalCloak Rear Bumper Upgrade Kit also includes the rear hoop bracket system. Click Here to Learn More About the MetalCloak Rear Bumper.

MetalCloak Rear Bumper Upgrade Kit

Optional Front Hoop Kat Walk

JL Wrangler Front Hoop Kat Walk

The JL Wrangler Jeep Kat Walk is a non-slip step platform that provides easy access to the top of the Jeep. The ARS Kat Walk is a bolt-on accessory that spans the windshield/hood area of JK that attaches to front hoop and is rated for 300lbs.

The Front Hoop Kat Walk is sold separately.

Optional Mounting Pod Lights

The front hoop allows pod light mounting brackets (R75011 / R75012) to mount directly to the hoop.

Pod Light Mounts are sold separately.

Mounting Pod Lights

Pick Your Bumper

Bumper Options

What's In The Kit?

What in the Kit
  • Front Hoop
  • Pier Plates
  • Roof Trusses
  • Rear Hoop
  • Frame Mount Brackets
  • Flexural Footings
  • NVH Urethane Bushings
  • All Required Hardware

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 2018 + 4-Door Sky One-Touch Top JL Wrangler
Front Hoop 2" X .120 Wall Steel Tube
Integrated Handle 1" X .120 Wall Steel Tube
Roof Trusses 2" X .120 Wall Steel Tube
Clamps 3" x .50 Wall Mild Carbon Steel
Rear Hoop 2" X .120 Wall Steel Tube
Frame Mount Brackets 1/4" Hot Rolled Steel
Bushings Hi-Durometer Urethane Bushings
Steel Coating Black Powdercoat
Gold Zinc - Mounting Brackets


IMPORTANT NOTES



Roof Pac Basket: The Roof Pak Basket will NOT work on Sky-Top equipped Jeeps.

Wind Noise: Adding racks and/or accessories to the exterior of your vehicle may increase wind noise especially on models with soft-tops, sky-tops, etc.

Model: Does NOT fit on a JL 392 due to a taller cowl/hood and does NOT fit on a JL 4XE due to the charge port location.

Kat Walk: The front hoop Kat Walk (R75080) is sold separately.

Pod Light Mounts The pod light mounts (R75011 / R75012) are sold separately.

INSTALLATION



Installation Difficulty Easy
Body Modification Some Cutting
Time to Install 3 - 4 Hours
Installation Instructions Click Here to see a full list of ARS Installation Instructions.
