JK Wrangler Rear Coil Spring Spacer & Retainer Kit

Rating:

100% of 100

Product ID

7192

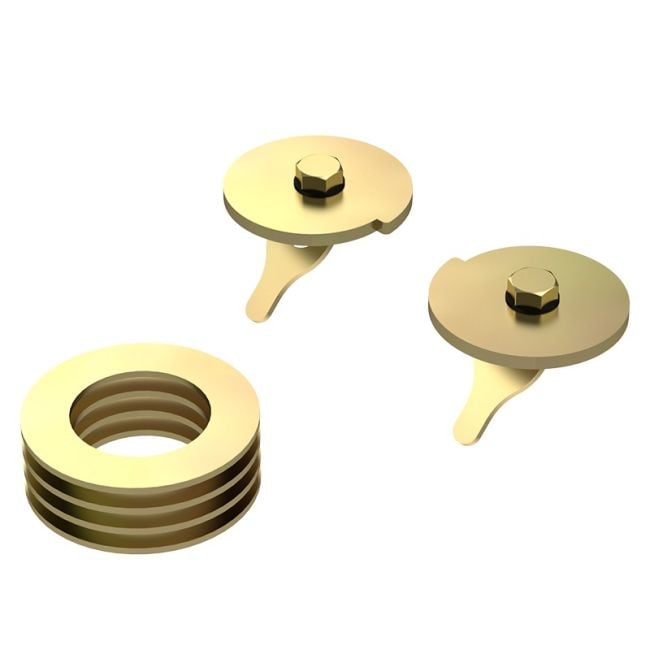

The MetalCloak JK Rear Coil Spring Spacer & Retainer adjusts corner height and assures the rear coils stay in place. The Spacer/Retainer solution attaches the the rear coils to the spring perches and then spacer plates can be stacked to dial in that perfect ride height.

Features Include:

(2) Laser Cut Gold Zinc Plated Steel Retainer Rings
(4) Rear Laser Cut Gold Zinc Plated Steel Spacer Rings
(2) Gold Zinc Plated Grade 8 bolts
(2) Spring Retainer Flag Nuts
(2) Black Zinc Plated Lock Washers
Made in the USA

While MetalCloak's True Dual Rate Coils ensures the spring stays [click for more...] in contact at full droop, not all coils are made the same. If you have other aftermarket coils or your custom set up depends on limiting straps or uses the shocks as an end stop; it is possible for the coil to come loose or worst case fall out if those limiters break unexpectedly. The spring retainer is a great way to ensure the spring stays in place.

Coil Spring Spacers are shims that will help you fine tune the corner height of your JK Wrangler, specific for your Jeep build. When adding accessories it may affect the way your Jeep sits as you add weight to one side or the other. Ride height spacers are an affordable and easy way to adjust ride height to level out your Jeep.

[click for less...]

Availability

Currently Shipping Within 1 Week

Price As Configured:

$74.00

Add to Build List

Details

VIDEOS

MetalCloak's JK Wrangler Suspension is the proven leader among production suspension systems.

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

Why Gold Zinc?

It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.

What is Corner Travel Index?

Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the county collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.

FMVSS 126 Compliant

MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.

THE TECH

Rear Coil Spring Spacers

up close rendering of the rear coil on the axle coil perch with the rear coil spacers under the coil.

These are perfect for fine tuning the corner height on your Jeep.

Allows for precise corner height adjustments
Made of 1/8" Steel Plate
Gold Zinc Plated Finish

As you build your Jeep and add accessories it can cause it to have a slight lean as the weight may not be balanced perfectly on the chassis; although this is only a cosmetic issue you can remedy it easily with the combination of spacers and retainers.

Rear Coil Spring Retainers

Easy Installation
Ensures Coil Spring Can Not Fall Out
1/4" Thick Steel
Gold Zinc Plated Finish

Don't take a chance on your coil spring falling out at extremes of articulation or rattling in the bucket. Get MetalCloak's Coil Spring Retainers for absolute assurance your springs stay in place.

cutaway rendering of the rear coil and axle with the gold zinc rear coil spring retainer holding the coil in place.

What's In The Kit?

A close-up view of a kit's contents, showcasing various hardware and items neatly organized for easy access and use.

Rear Coil Spring Spacers (4)
Rear Coil Spring Retainers (2)
All Required Hardware

TECHNICAL SPECIFICATIONS

Items	Details
Compatibility	2007 - 2018 JK Wrangler
Rear Coil Spring Spacers	1/8" Steel Plate
Rear Coil Spring Retainers	1/4" Hot Rolled Steel
Steel Coating	Gold Zinc

INSTALLATION

Installation Difficulty	Easy
Body Modification	None
Time to Install	1 Hour
Installation Instructions	Click Here to see a full list of MetalCloak Installation Instructions.
