Frame-Built Bumper #270001, YJ

Rating:
90% of 100
Product ID
FB-YJ-270001

MetalCloak's Jeep YJ Wrangler Frame-Built Bumper (Pre-Configured) - one of our most popular builds.

Features Include:

  • Fits Jeep YJ Wrangler
  • Frame-Built Bumper Base
  • 43" Lo-Profile Crawler Caps
  • Winch Guard
  • All Required Hardware
  • Easy Installation
  • Made In The USA
The Frame-Built Bumper Base replaces the weak factory bumper with a 3/16" steel plate that is a [click for more...] sturdy platform for mounting a winch to. The base allows you to choose your end caps, winch guards, stingers or light bar attachments for a fully customized look.

The base is designed to mount all popular winch brands; the unique design ensures the winch is as low as possible for the best possible airflow through the seven-slot grille.

The Lo-Profile Crawler Caps mount directly to the MetalCloak frame-built bumper base, measuring 43" from end to end when installed. The crawler caps give you a sleek low-profile look. They are made of strong laser-cut 3/16" steel, have built-in approach angles to help slide up and over obstacles, and are finished in MetalCloak's signature black textured powder coat to help protect them against the elements.

The winch guard's low-profile design adds protection without obstructing your line of sight. It is made of strong 3/16" hot-rolled steel and 1 3/4" steel tubing. The guard protects the winch from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers. The winch guard comes with welded-on shackle mount recovery points for when you or others are stuck on the trail.

Note: All TJ/LJ/YJ Hoops come with weld-on shackles.

Note: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

[click for less...]


Availability
Usually Ships in 2-3 Weeks
Price As Configured:
$604.00


VIDEOS

MetalCloak's Jeep Wrangler Bumpers

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off-Road Enthusiast.

TJ/LJ/YJ Frame-Built Bumper Base

The Frame-Built Base is rugged in function and sleek in design.

Winch Guard

The Guard's low-profile design adds protection for the winch and offers a non-obtrusive presence that mounts to the MetalCloak Frame-Built Bumper Systems perfectly.

Premium Black Powder Coat

Our signature black textured powder coat provides a micro-texture semi-gloss finish that is easily repairable after trail damage. Watch the video to learn more.

THE TECH

Front Bumper Base

Rendering of ghosted Jeep and frame-built bumper front view highlighting the bumper at a 45 degree angle.

The MetalCloak Front Bumper for the Jeep YJ/TJ/LJ Wrangler provides a customized look.

  • 3/16" Steel Plate
  • 45° Approach Angle
  • 30K PSI Yield Strength (Bend Point)
  • 49K PSI Tensile Strength (Break Point)
  • Seamless Construction (Zero Welds)
  • Premium Black Textured Powder Coating

Specifications

The Frame-Built Bumper Base replaces the weak factory bumper with a 3/16" steel plate that is a sturdy platform for mounting a winch to.

Bolts directly on and works with all components.

Rendering of ghosted Jeep and frame-built bumper side view highlighting the bumper with front bumper specifications.
Rendering of ghosted Jeep and frame-built bumper front view highlighting the bumper with front bumper specifications. Rendering of ghosted Jeep and frame-built bumper top view highlighting the bumper with front bumper specifications.

43" Lo-Profile Crawler Caps

Rendering of ghosted Jeep and frame-built bumper front view highlighting the End Caps at a 45 degree angle.

The MetalCloak 43" Lo-Profile Crawler Caps for the Jeep CJ/YJ/TJ/LJ provide a customized look for MetalCloak frame-built front bumpers.

  • 3/16" Hot-Rolled Steel Plate
  • 45° Approach Angle
  • 50° Front Turning Clearance
  • 45° Side Clearance Angle
  • Seamless Construction (Zero Welds)
  • Premium Black Textured Powder Coating

Specifications

The 43" Lo-Profile Crawler Caps mount directly to the MetalCloak bumper base, are made of 3/16" hot-rolled steel plate and provide minimal obstructions and the best in approach angles.

Bolts directly on and works with all components.

Rendering of ghosted Jeep and frame-built bumper side view highlighting the End Caps with end cap specifications.
Rendering of ghosted Jeep and frame-built bumper front view highlighting the End Caps with end cap specifications. Rendering of ghosted Jeep and frame-built bumper top view highlighting the End Caps with end cap specifications.

Winch Guard

Rendering of ghosted Jeep and frame-built bumper front view highlighting the winch guard at a 45 degree angle.

The MetalCloak Winch Guard for the Jeep CJ/YJ/TJ/LJ provides a customized look for MetalCloak frame-built front bumpers.

  • 1 3/4" x .120 Wall Tubing
  • Hot-Formed 3/16" Steel Plate
  • 45° Approach Angle
  • 8 1/4" Height Above Bumper
  • 22 3/4" Guard Width
  • Premium Black Textured Powder Coating

Specifications

The winch guard's low-profile design adds protection without obstructing your line of sight. It is made of strong 3/16" hot-rolled steel and 1 3/4" steel tubing. The guard protects the winch from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers.

Bolts directly on and works with all components.

Rendering of ghosted Jeep and frame-built bumper side view highlighting the winch guard with winch guard specifications.

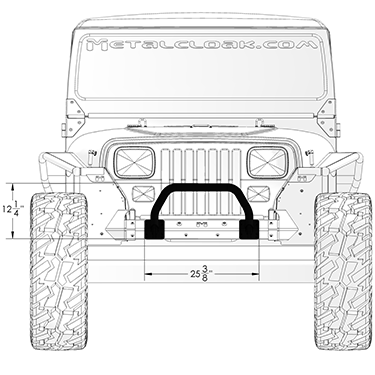

Rendering of ghosted Jeep and frame-built bumper front view highlighting the winch guard with winch guard specifications. Rendering of ghosted Jeep and frame-built bumper top view highlighting the winch guard with winch guard specifications.

What's in the Kit?

Contents of the MetalCloak YJ Frame-Built Bumper kit, including the frame-built bumper base, 43" Lo-Profile Crawler caps, winch guard and all required hardware.
  • Frame-Built Bumper Base
  • 43" Lo-Profile Crawler Caps
  • Winch Guard
  • All Required Hardware

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 1987-1995 YJ Wrangler
Front Bumper Base 3/16" Hot-Rolled Steel Plate
43" Lo-Profile Crawler Caps 3/16" Hot-Rolled Steel Plate
Winch Guard 1 3/4" x .120 Wall Steel Tube
3/16" Hot-Rolled Steel Plate
Steel Coating Black Powder Coat


IMPORTANT NOTES



Hoops: All TJ/LJ/YJ Hoops come with weld-on shackles.

Recovery Points: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

INSTALLATION



Installation Difficulty Easy
Body Modification None
Time to Install 1-2 Hours
Installation Instructions View YJ Frame-Built Bumper installation instructions.


CUSTOMER QUESTIONS
What size winch are MetalCloak bumpers designed for?
They are designed for a mid-frame winch with a rating up to 12K lbs.
