It's Your Jeep, Only Better

Frame-Built Bumper #2404, JL Wrangler

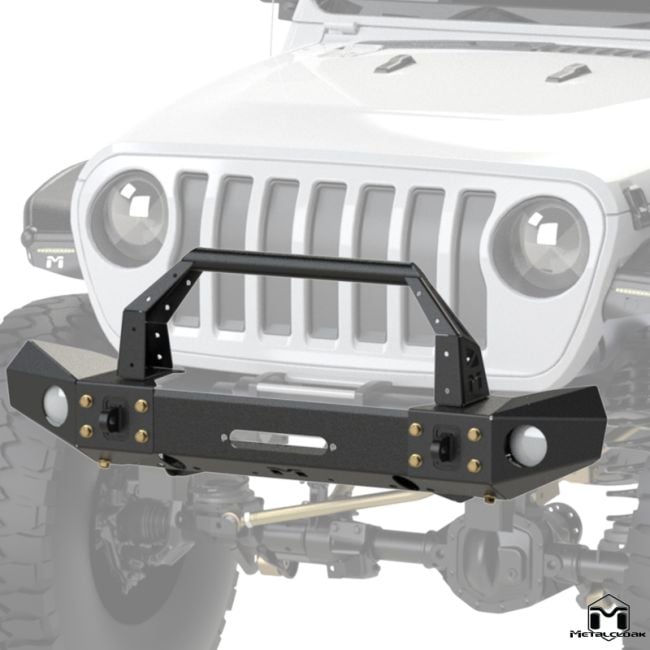

MetalCloak's Jeep Wrangler JL Frame-Built Bumper (Pre-Configured) - one of our most popular builds.

Starting with the Frame Built Bumper base, this is equipped with 56" Stock Flare Caps that configure it to be a Mid-profile, hi-clearance bumper with a total width of 56". The Bull Bar provides added protection for your winch. Ready for your choice of winch to be mounted, this configuration provides a great look with the added protection to get you out on the trails with confidence.

This Kit Includes:

  • Frame Built Bumper Base
  • 56" Stock Flare Caps
  • Bull Bar
  • All Hardware for Install
Availability: Usually Ships in 1 to 2 Weeks
Product Code: FB-JL-2404*
Frame-Built Bumper #2404, JL Wrangler

$697.00

JL WRANGLER FRAME-BUILT STEEL BUMPER BASE

The pre-configured bumper systems start with our JL Wrangler Bumper Base and Winch Plate.

Precision engineered, this is not just an adapted JK base, they are designed specifically for the New Jeep JL Wrangler.

  • Hot Rolled Steel 3/16" Steel Plate
  • Integrated Winch Plate
  • Gold Zinc Brackets
  • Shackle Mounts hold up to a 7/8" adapter
  • Premium Black Texture Powder Coating
6160 Exploded View
6160 bumper base


ADDITIONAL INFORMATION:

The first step on your Frame-Built Bumper, the Bumper Base. This is designed for maximum strength to meet and beat anything you can throw at it. Engineered to fit all major winches without modification. All MetalCloak components bolt directly on creating a unified bumper specific for your Jeep build.

EASY TO INSTALL:

Installs in less than an hour, and all components are bolt-on, so you may modify or replace as desired.

Dividing Line

JL WRANGLER 56" LIGHT CAPS

Built from the Frame Built Bumper Base this package includes 56" light caps allowing you to add/keep additional lighting

  • Re-use your STOCK lights or add lights!
  • 56" bumper width per configuration
  • Cold Formed 10GA Steel Plate
  • Premium Black Texture Powder Coating
  • Minimal Welds
  • Fits all JL Frame-Built Bumpers
BOLT ON:

End Caps are secured by Grade-8 hardware and are easily removable.

Want a different configuration?

No Problem; you can easily change your bumper caps out to meet your changing build needs.
3115 front angle Image
Dividing Line

JL WRANGLER BULL BAR

The Bull Bar provides a lo-profile solution to give added protection to your winch.
  • 1 3/4" .120 Wall Tubing
  • Cold Formed 7GA Steel Plate
  • Premium Black Textured Powdercoat
  • Fits JL Frame-Built Bumper Systems
Bolt On:

Like all our components, the JL Bull Bar is replaceable if you damage it or would like a new configuration.

Dividing Line
PREMIUM BLACK TEXTURED POWDERCOAT
Our Premium Black Textured Powdercoat is the best in the industry. Check out our video on how we powdercoat.
Dividing Line
SHIPPING & MATERIAL SPECIFICATIONS
ItemsMaterials
Bumper Base 3/16" Hot Rolled Steel Plate
Integrated Winch Plate 10GA Hot Rolled Steel
Support Brackets 11GA Hot Rolled Steel
56" Caps 10GA Cold Rolled Steel
Bull Bar 1 3/4" .120 Steel Tubing
Total Weight 80 lbs
Available in Black Powdercoat? Yes
Available in Gold Zinc? Yes - Support Brackets
OEM Clevite and Typical Flex Joint is the Duroflex Joint
INSTALLATION
Installation Difficulty Easy-Bolt on
Body Modification None
Time to Install 1 - 2 Hour
OEM Clevite and Typical Flex Joint is the Duroflex Joint
Icon

INSTALLATION INSTRUCTIONS:

At MetalCloak we work continuously to give you the best possible installation instructions. We constantly take customer feedback and look at how we can make the instructions better for you. Click below to see our full list of installation instructions.

Click Here to see a full list of MetalCloak Installation Instructions.

OEM Clevite and Typical Flex Joint is the Duroflex Joint
