TJ BUMPER BASE
|
Frame-Built Base, Hot Rolled Steel, TJ/LJ
• 7GA Steel Plate
• Integrated Winch Plate
• 45° Approach Angle
• 30K PSI Yield Strength (Bend Point)
• 49K PSI Tensile Strength (Break Point)
• Black Plated Grade-8 Hardware
• Premium Black Texture Powder Coating
• Seamless Construction (Zero Welds)
• Fits TJ, LJ, YJ
Shipment Includes:
• Bumper Base
• Installation Hardware
• MetalCloak Decals (2)
|
|
ADDITIONAL INFORMATION:
The first step on your Frame-Built adventure, the Frame-Built Base is designed to fit all major winches with no modification. All components bolt directly on creating a unified bumper ready to meet any challenge.
Once you choose your base, select your End Caps, Fairlead, Shackle Mounts and Hoop, to complete your Frame-Built adventure.
EASY TO INSTALL:
Installs in less than an hour, and all components are bolt-on, so you can modify or replace as needed.
|
|
|
|
|
|
 |

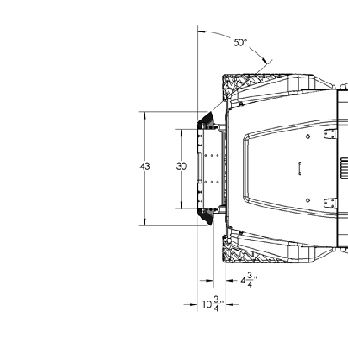

43" HI - CRAWLER CAPS
|
43” Hi-Crawler Caps, TJ/LJ/YJ/CJ
• Hot Formed 7GA Steel Plate
• 45° Approach Angle
• 50° Front Turning Clearance Angle
• 45° Side Clearance Angle
• Premium Black Texture Powder Coating
• Seamless Construction (Zero Welds)
• Fits TJ, LJ, YJ, CJ Frame-Built Bumpers
Bumper Widths per Configuration:
• TJ/LJ Wrangler -- 43"
• YJ Wrangler -- 44"
• CJ -- 39"
Shipment Includes:
• Passenger Side Cap
• Driver Side Cap
|
|
ADDITIONAL INFORMATION:
Part of the Frame-Built Bumper System for Jeep CJ’s and Wranglers (’73 - ’06), the Hi-Crawler Caps are snug and tight for total wheel clearance.
BOLT ON:
All End Caps are easily removable. Secured by Grade-8 hardware, if, over time, you damage one beyond recognition, just unbolt it and get yourself a new one.
Want a different configuration?
No Problem, you can easily transition your bumper through your own build needs.
|
|
|
|
|
|
|
|
|
|
|
|
 |
HI - MOUNT SHACKLES
|
Hi-Mount Shackle System
• T6 Aircraft-Grade Aluminum
• Type III Mil Spec Anodized Hard Coat Finish
• Holds up to 3/4" Shackles/D-Rings
• Fits TJ, LJ, YJ, CJ Frame-Built Bumper Systems
Shipment Includes:
• Two Shackle Mounts
• Mounting Hardware
|
|
ADDITIONAL INFORMATION:
Part of the Frame-Built Bumper System for Jeep CJ’s and Wranglers (’73 - ’06), the Hi-Mount Shackle System can handle the toughest pull to get you, or your buddy, out of trouble when it matters the most.
BOLT ON:
Like all out components, they are Frame-Built and can be bolted directly to the frame with or without the Frame-Built Base.
|
|
|
|
|
|
 |
WINCH GUARD
|
Winch Guard
• 1 3/4" .120 Wall Tubing
• Hot Formed 7GA Steel Plate • 45° Approach Angle • 8 1/4" Height Above Bumper • 22 3/4" Guard Width • Premium Black Textured Powdercoat • Fits TJ, LJ, YJ, CJ Frame-Built Bumper
Systems
Shipment Includes:
• Winch Guard
|
|
ADDITIONAL INFORMATION:
Part of the Frame-Built Bumper System for Jeep CJ’s and Wranglers (’73 - ’06), the Winch Guard provides a clean look for street or the trail. Ruggedly strong it will stand up to virtually anything.
BOLT ON:
Like all our components, the winch guard is replaceable if you damage it or would like a new configuration.
|
|
|
|
|
|
|
|
 |
FIXED FAIRLEAD
|
Aluminum Fixed Fairlead
• T6 Aircraft-Grade Aluminum
• Type III Mil Spec Anodized Hard Coat Finish • Custom Designed for the Frame-Built
Bumper
• For use with synthetic recovery lines only. • Fits TJ, LJ, YJ, CJ Frame-Built Bumper
Systems
Shipment Includes:
• Aluminum Fixed Fairlead
|
|
ADDITIONAL INFORMATION:
Part of the Frame-Built Bumper System for Jeep CJ’s and Wranglers (’73 - ’06), the Fixed Fairlead System guides your synthetic winch line with ease.
BOLT ON:
Like all our components, they are Frame-Built and can be bolted directly on and work with all components.
|
|
|
|
|
PREMIUM BLACK TEXTURED POWDERCOAT
|
Our Premium Black Textured Powdercoat is the best in the industry. Check out our video on how we powdercoat.
|
|
|
