Frame-Built Bumper #231002, YJ

Product ID
FB-YJ-231002

MetalCloak's Jeep YJ Wrangler Frame-Built Bumper (Pre-Configured) - one of our most popular builds.

Features Include:
  • Frame Built Bumper Base
  • 43” Hi-Crawler Caps
  • Hi-Mount Shackles
  • Hi-Mount Stinger
  • All Hardware Required
  • Easy Installation
  • Made in the USA
The Frame-Built Bumper Base replaces the weak factory bumper with a 3/16" steel plate that is a [click for more...] sturdy platform for mounting a winch to. The base allows you to choose your end caps, winch guards, stingers or light bar attachments for a fully customized look.

The base is designed to mount all popular winch brands; the unique design ensures the winch is as low as possible for the best possible air flow through the Seven Slot grill.

The hi crawler caps mounts directly to the MetalCloak frame built bumper base measuring 43” from end to end when installed. The hi crawler caps are designed to work in conjunction with the hi-mount shackle kit, made of strong laser cut 3/16” steel, have built in approach angles to help slide up and over obstacles, and is finished in MetalCloak’s signature black texture powder coat to help protect them against the elements.

The hi-mount shackles mount directly to the MetalCloak bumper base and are designed to hold 3/4" D-ring shackles. 2” thick aluminum structure provides a strong recovery point when out on the trail. The hi-mount shackles are finished in type-III mil spec black anodized finish to help protect them against the elements. The hi-mount shackles come with a round edge design that allows for either the use of a standard metal D-Ring or Soft Shackle.

The Hi-Mount Stinger’s low-profile design adds protection without obstructing your line of sight. Made of strong 3/16" hot rolled steel and 1 3/4” steel tubing and works in conjunction with the MetalCloak Hi-Mount Shackle Kit. The stinger protects the winch from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers. The stinger comes with welded on shackle mount recovery points for when you or others are stuck on the trail.

Note: On January 2024 Improved shackle mount design. The “rounded edge” design allows for the use of either standard metal d-rings or soft shackles.

Note: All TJ/LJ/YJ Hoops come with weld on shackles.

Note: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

[click for less...]


Availability
Usually Ships in 1 Week
Price As Configured:
$756.00


VIDEOS

MetalCloak's Jeep Wrangler Bumpers.

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

TJ/LJ/YJ Frame Built Bumper Base

The Frame-Built Base is rugged in function and sleek in design.

Premium Black Powdercoat

Our signature Black Textured Powdercoat provides a micro-texture semi-gloss finish that is easily repairable after trail damage. Watch the video to learn more.

THE TECH

Front Bumper Base

The MetalCloak Front Bumper for the Jeep YJ/TJ/LJ Wranglers and provides a customized look.

  • 3/16" Steel Plate
  • 45° Approach Angle
  • 30K PSI Yield Strength (Bend Point)
  • 49K PSI Tensile Strength (Break Point)
  • Seamless Construction (Zero Welds)
  • Premium Black Texture Powder Coating
Front Bumper Base Skewed View

Specifications

Front Bumper Base Side View

The Frame-Built Bumper Base replaces the weak factory bumper with a 3/16" steel plate that is a sturdy platform for mounting a winch to.

Bolts directly on and works with all components.

Front Bumper Base Front ViewFront Bumper Base Top View

43" Hi Crawler Caps

The MetalCloak 43" Hi Crawler Caps for the Jeep CJ/YJ/TJ/LJ Wranglers and provides a customized look for MetalCloak frame-built front bumpers.

  • 3/16" Hot Rolled Steel Plate
  • 45° Approach Angle
  • 50° Front Turning Clearance
  • 45° Side Clearance Angle
  • Seamless Construction (Zero Welds)
  • Premium Black Texture Powder Coating
43" Hi Crawler Caps Skewed View

Specifications

43" Hi Crawler Caps Side View

The 43" Hi Crawler Caps mounts directly to the MetalCloak bumper base and is designed for mounting with the hi mount shackle kit. The crawler caps are made of 3/16" hot rolled steel plate and provides minimal obstructions and the best in approach angles.

Bolts directly on and works with all components.

43" Hi Crawler Caps Front View43" Hi Crawler Caps Top View

Hi-Mount Shackle Systems

The MetalCloak Hi-Mount Shackle System for CJ/YJ/TJ/LJ Jeep Wrangler Frame-Built bumper provides a unique upper recovery mount that is trail-tested tough capable of handling anything you can throw at it.

  • T6 Aircraft-Grade Aluminum
  • Type III Mil Spec Anodized Hard Coat Finish
  • Holds up to 3/4" Shackles/D-Rings
Hi-Mount Shackle Systems Skewed View

Round Edge Design

Whats in the Kit

The Billet Shackle System (as of January 2024) has a rounded edge design that allows for either the use of a standard metal D-Ring or Soft Shackle.

Specifications

Hi-Mount Shackle Systems Side View

The hi-mount shackles mount directly to the MetalCloak bumper base and is designed to hold 3/4" D-ring shackles. The hi-mount shackles are made of 2” aluminum and provide a strong recovery point when out on the trail. The hi-mount shackles are finished in type-III mil spec black anodized finish to help protect them against the elements.

Like all out components, they are Frame-Built and can be bolted directly to the frame with or without the Frame-Built Base.

Hi-Mount Shackle Systems Front ViewHi-Mount Shackle Systems Front View

Hi-Mount Stinger

The MetalCloak Hi-Mount Stinger for the Jeep YJ/TJ/LJ Wranglers and provides a customized look for MetalCloak frame-built front bumpers.

  • 1 3/4" .120 Wall Tubing
  • Hot Formed 3/16" Steel Plate
  • 45° Approach Angle
  • 59° Support Angle
  • 15 1/2" Height Above Bumper
  • 21 1/4" Stinger Width
  • Premium Black Texture Powder Coating
Hi-Mount Stinger Skewed View

Specifications

Hi-Mount Stinger Side View

The Hi-Mount Stinger low-profile design adds protection without obstructing your line of sight. Made of strong 3/16" hot rolled steel and 1 3/4” steel tubing. The stinger protects the stinger from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers.

Bolts directly on and works with all components.

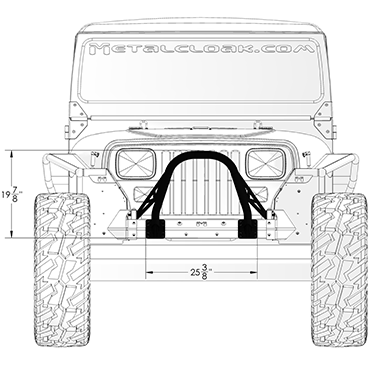

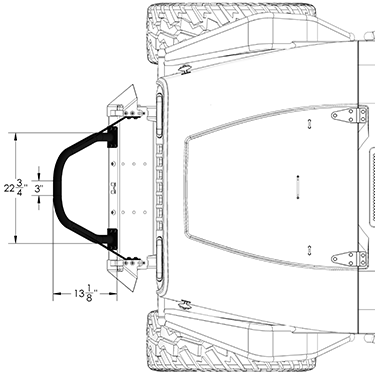

Hi-Mount Stinger Front ViewHi-Mount Stinger Top View

What's in the Kit?

  • Front Bumper
  • 43" Hi-Crawler Caps
  • Hi-Mount Shackles
  • Hi-Mount Stinger
  • All Required Hardware
Whats in the Kit

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 1987 - 1995 YJ Wrangler
Front Bumper Base 3/16" Hot Rolled Steel Plate
43" Hi-Crawler Caps 3/16" Hot Rolled Steel Plate
Hi-Mount Shackles 2" x 1 1/4" Aluminum 6061-T6
Hi-Mount Stinger 1 3/4" x .120 Wall Steel Tube
3/16" Hot Rolled Steel Plate
Steel Coating Black Powder Coat - Bumper, End Caps & Winch Guard
Black Anodized - Hi-Mount Shackles


IMPORTANT NOTES



Soft Shackles: On January 2024 Improved shackle mount design. The “rounded edge” design allows for the use of either standard metal d-rings or soft shackles.

Hoops: All TJ/LJ/YJ Hoops come with weld on shackles.

Recovery Points: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

INSTALLATION



Installation Difficulty Easy
Body Modification None
Time to Install 1 - 2 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
