Frame-Built Bumper #2202, JL Wrangler, JT Gladiator

Product ID
FB-JL-2202*

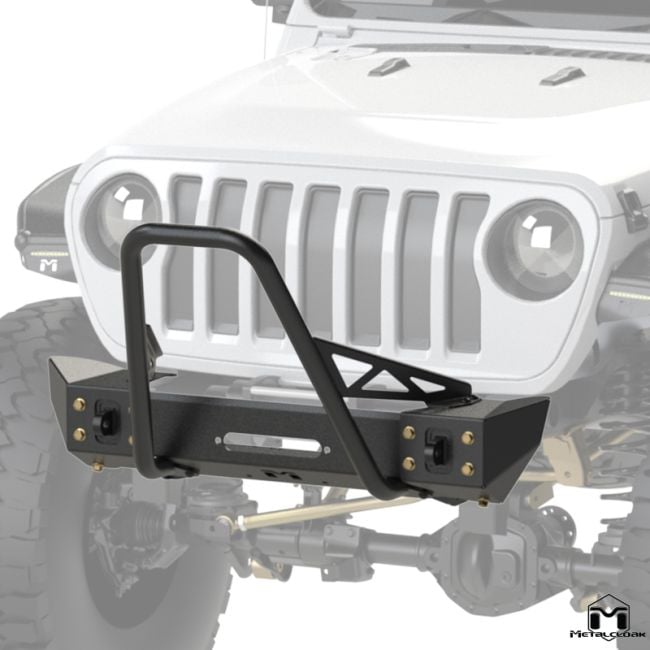

MetalCloak's Jeep JL Wrangler & JT Gladiator Frame-Built Bumper (Pre-Configured) - one of our most popular builds.

Kit Includes:
  • Frame Built Bumper Base
  • 46" Crawler Caps
  • Mid Stinger
  • All Hardware for Install
The Frame-Built Combo Bumper Base replaces the weak factory bumper with [click for more...] a 3/16" steel plate that is a sturdy platform for mounting a winch to. The base allows you to choose your end caps, winch guards, stingers or light bar attachments for a fully customized look.

The base is designed to mount all popular winch brands; the unique design ensures the winch is as low as possible for the best possible air flow through the Seven Slot grill.

The crawler caps mounts directly to the MetalCloak combo bumper base measuring 46” from end to end when installed. The crawler caps are made of strong CNC formed 1/8" steel, have built in approach angles to help slide up and over obstacles.

The mid stinger's low-profile design adds protection without obstructing your line of sight. Made of strong 3/16" hot rolled steel and 1 3/4” steel tubing. The stinger protects the winch from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers.

The mid stinger bolts directly to the MetalCloak frame-built front bumper system for a quick and easy installation. All hardware is included to secure the stinger into place. The mid stinger comes in MetalCloak’s signature black powder coat to protect it against corrosion and rust while being abused out on the trail.

Frame-Built Combo Bumper Base, 46" Crawler Caps and Mid Stinger are finished in MetalCloak's signature black powdercoat.

Add accessories like a winch hook, license plate adapter, or fairlead. If you want to customize the look of your front bumper, check out any of our other bumper options to change to a fresh configuration for your Jeep.

Note: The lights from the factory equipped steel bumper will not fit.

Note: Mojave Model JT's may need modification to the shock reservoir bracket to fit in its original position

Note: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

[click for less...]


Availability
Currently Shipping in 2-3 Weeks
Price As Configured:

$1,042.00

Customize Frame-Built Bumper #2202, JL Wrangler, JT Gladiator
Base Kit   + $1,042.00
[what's this?]

* Required Fields



VIDEOS

MetalCloak's Jeep Wrangler Bumpers

Who Is MetalCloak?

MetalCloak creates Game-Changing Products for the Off Road Enthusiast.

JL Frame Built Bumper

The MetalCloak JL/JT Frame Built Bumper is the best choice for strength, versatility, and performance.

Mid Stinger

The Stinger’s low-profile design adds protection without obstructing your line of sight. Made of strong 3/16" hot rolled steel and 1 3/4” steel tubing.

Front Bumper End Caps

The end caps are CNC formed and made of strong one-eighth inch steel, have built in approach angles, are easily removable, and are secured to the bumper with grade-8 hardware.

Premium Black Powdercoat

Our signature Black Textured Powdercoat provides a micro-texture semi-gloss finish that is easily repairable after trail damage. Watch the video to learn more.

THE TECH

JL & JT Frame-Built Combo Bumper Base

Close-up of a blue Jeep with a black grill and an aftermarket bumper.
  • Hot Rolled Steel 3/16" Steel Plate
  • Integrated Winch Plate
  • Gold Zinc Brackets
  • Shackle Mounts hold up to a 7/8" adapter
  • Premium Black Texture Powder Coating
  • Holds Winch Lower for Better Airflow

Modular Design

The first step on your Frame-Built adventure, the Combo Bumper Base is designed to fit all major winches with no modification. All components bolt directly on creating a unified bumper ready to meet any challenge.

Once you choose your base, select your End Caps, Fairlead, Shackle Mounts and Hoop or winch guard to complete your Frame-Built bumper. The built-in Winch Plate will fit most winches including the Warn Powerplant.

Front view of a blue Jeep with an aftermarket bumper and LED lights.

Recovery Points

A shiny gold zinc D-ring shackle mounted on the combo bumper base welded on recovery point.

D-Ring shackle mounts for confidence when recovery of yourself or others is the task at hand.

46" Crawler Caps

  • Cold Formed 1/8" Steel Plate
  • Premium Black Texture Powdercoating
  • Seamless Construction (Zero Welds)
  • Fits JL and JT Frame-Built Bumpers
Rendering of ghosted JL Wrangler and frame built bumper front view highlighting the 46" caps at a 45 degree angle.

Specifications

Rendering of ghosted JL Wrangler and frame built bumper side view highlighting the 46" crawler caps with end cap specifications.

Bolt On:

All End Caps are secured with Grade-8 hardware and easily removable. Should you damage one just unbolt it and get yourself a new one.

Want a different configuration?

No Problem, you can easily change your bumper build to meet your needs.

Rendering of ghosted JL Wrangler and frame built bumper front view highlighting the 46" crawler caps with end cap specifications. Rendering of ghosted JL Wrangler and frame built bumper top view highlighting the 46" crawler caps with end cap specifications.

Mid Stinger

The Stinger’s low-profile design adds protection without obstructing your line of sight. The stinger protects the grill, radiator, and winch from damage when out on the trail while providing no loss in approach angle like typical bulky front bumpers.

  • 1 3/4" .120 Wall Tubing
  • Hot Rolled 3/16" Steel Plate
  • Premium Black Textured Powder Coat
  • Fits JL/JT Frame-Built Bumper Systems
Rendering of ghosted JL Wrangler and frame built bumper front view highlighting the stinger at a 45 degree angle.

Specifications

Rendering of ghosted JL Wrangler and frame built bumper side view highlighting the stinger with mid stinger specifications.

Bolt On:

The mid stinger is modular part for your MetalCloak Bumper; add accessories like a winch hook, license plate adapter, or fairlead. If you want to customize the look of your front bumper, check out this mid stinger or any of our other bumper options to change to a fresh configuration for your Jeep.

Rendering of ghosted JL Wrangler and frame built bumper front view highlighting the mid stinger with end cap mid stinger specifications. Rendering of ghosted JL Wrangler and frame built bumper top view highlighting the Mid Stinger with Mid Stinger specifications.

What's in the Kit?

  • Front Bumper Base
  • Integrated Winch Plate
  • Support Brackets
  • 46" Crawler Caps
  • Mid Stinger
  • All Required Hardware
A close-up view of a kit's contents, showcasing various tools and items neatly organized for easy access and use.

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 2018 + JL Wrangler | 2019 + JT Gladiator
Bumper Base 3/16" Hot Rolled Steel
Integrated Winch Plate 1/8" Hot Rolled Steel
Support Brackets 1/8" Hot Rolled Steel
46" Crawler Caps 1/8" Cold Rolled Steel
Mid Stinger 1¾" x .120 Steel Tube
3/16" Hot Rolled Steel Brackets
Steel Coating Bumper - Black Texture Powder Coat
Support Brackets - Gold Zinc


IMPORTANT NOTES



Factory Lights: The lights from the factory equipped steel bumper will not fit.

Mojave: Mojave Model JT's may need modification to the shock reservoir bracket to fit in its original position

Recovery Points: Shackle mounts are engineered to be used as recovery points only; the shackle mounts are NOT designed for flat-towing.

INSTALLATION



Installation Difficulty Easy
Body Modification None
Time to Install 1 - 2 Hours
Installation Instructions Click Here to see a full list of MetalCloak Installation Instructions.
