If you have ever chased smoother articulation on a Jeep, you already know suspension joints are not a glamorous topic. Nobody gets excited about a hinge. But in real-world trails, joints are the difference between controlled flex and harsh, noisy bind-ups.
MetalCloak’s Duroflex (Duraflex) joint is one of those rare suspension components that changed the conversation. Over a decade ago, it introduced a self-centering flex joint design that prioritizes:
- Over 35 degrees of misalignment
- Unlimited rotational range
- Minimal maintenance and no complex moving parts
- Better noise, vibration, and harshness (NVH) dampening
That reputation did not stay exclusive. Over time, other companies tried to emulate the design. So the key question becomes simple: who actually performs when you put real force and real geometry on these joints?
Here is a clear breakdown of how different flex joint designs compare, what the testing reveals, and why self-centering and load sharing matter more than most people realize.
What Makes a Flex Joint “Good” Beyond Just Degrees of Travel
When flex joints are discussed, the first number people quote is articulation. And yes, misalignment degrees matter. But articulation alone can be misleading if a joint is limited mechanically or behaves unevenly under load.
A great flex joint needs to do more than survive. It needs to:
- Self-center so the control arm returns to a usable position
- Allow the joint to articulate without binding as suspension angles change
- Dampen NVH instead of transmitting every bump and vibration straight into the chassis
- Distribute forces evenly to avoid premature wear
The MetalCloak Duroflex joint is built around these principles. It is designed as a self-centering flex joint that can handle significant misalignment while maintaining a more consistent articulation behavior, even as the suspension moves through rough terrain.

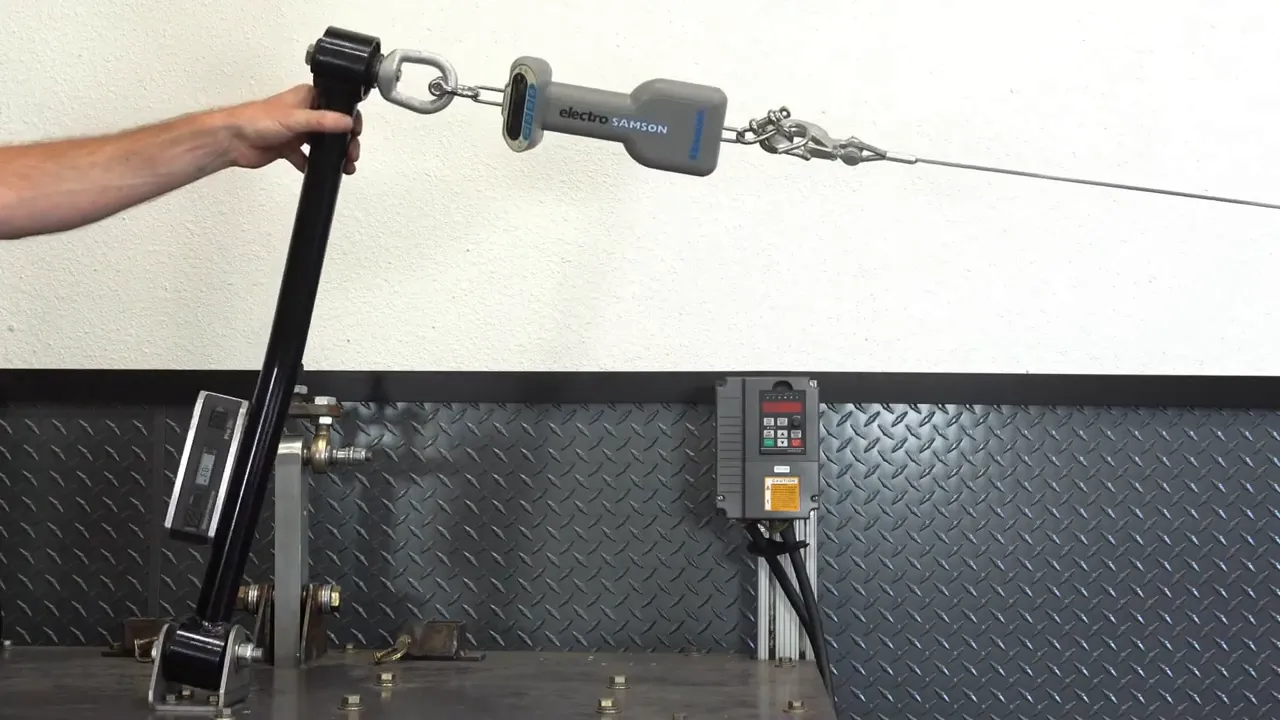

How the Joint Comparison Testing Was Done (Real Geometry, Equal Loads)
To compare competing joint designs, the testing approach focused on replicating practical conditions rather than relying on marketing specs.
Here is the testing methodology, simplified:

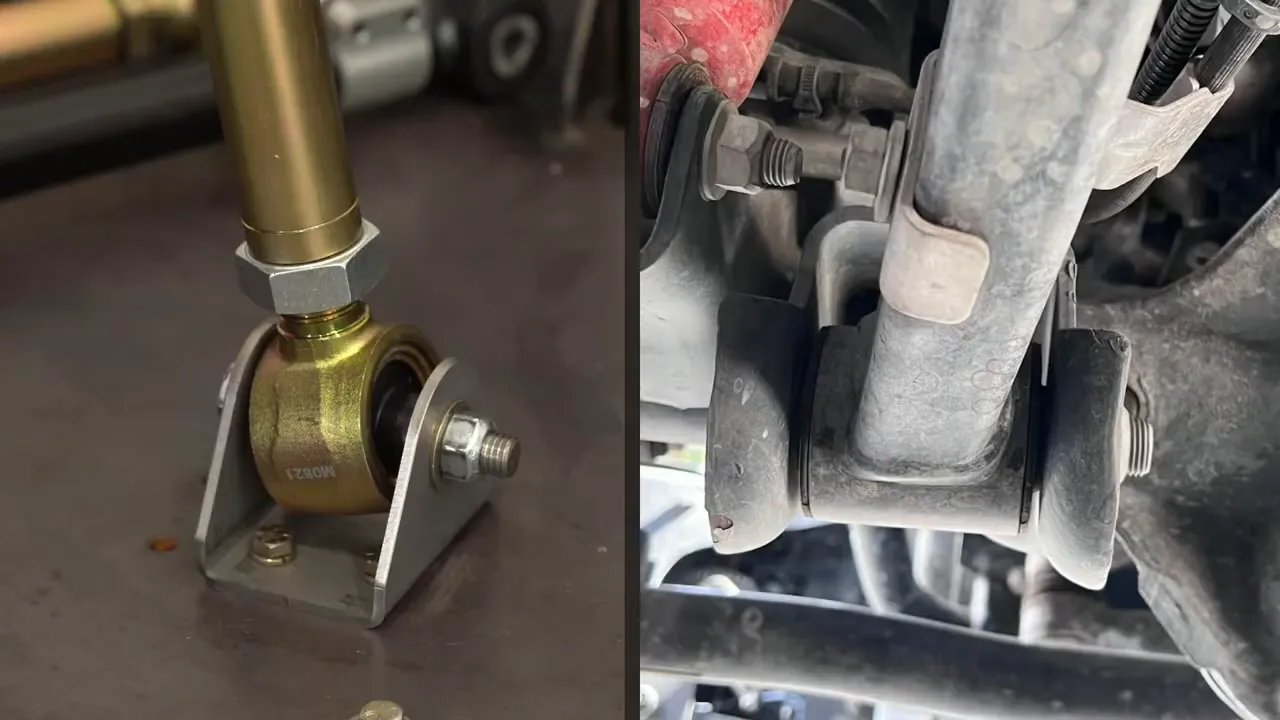

- Real-world bracket geometry: The test used the dimensions of a factory Jeep JL front lower control arm bracket, the kind of real mounting surface that dictates how everything will fit and move.
- Digital angle finder setup: Each control arm was set with a digital angle finder to zero to establish a consistent reference point.
- Apply the same misalignment force each run: The joints were pulled until they reached their limit or until the control arm interfered with the bracket. A digital pull scale helped keep loads consistent.
- Record the “joint score” as degrees: The angle finder readings became the performance scores used for comparison.
The outcome was then compared across multiple manufacturers, with some joints showing mechanical limitations and others allowing interference or collision behavior with the test bracket. That is important, because collision or early bind typically means less usable articulation and potentially worse NVH in the real world.
The Big Problem: Mechanical Limits and Collision During Articulation
Some joints have a clear limit built into their design. Others can flex, but the control arm or joint alignment may hit the bracket before the joint itself achieves its theoretical range.
In either scenario, the suspension cannot keep doing what you want it to do. When articulation gets cut short by physical limits, you lose the ability to follow uneven terrain smoothly. Instead, the system can feel:
- Harsher
- More “bindy” at certain angles
- Less predictable under load
The testing notes highlighted exactly this: some joints hit limitations, while others led to the control arm colliding into the test bracket. That is not the kind of behavior you want when you are aiming for consistent flex and controlled handling.
Even More Important: Load Sharing and Self-Centering NVH Performance
Here is where the conversation gets really interesting.
Many people build control arms with a focus on getting flex on one side. But flex is not just one joint doing all the work. A control arm assembly effectively needs both sides to work together to manage misalignment and dampen NVH.
Some setups use dissimilar joints between the left and right sides of the control arm to “make it work” and still reach acceptable articulation. The problem is that dissimilar joints often divide responsibilities unevenly.
In the testing logic described, when joints are dissimilar:
- One joint becomes the primary articulation worker, taking almost the full force during misalignment.
- The other joint becomes the NVH-focused piece, trying to dampen noise and harshness rather than share articulation loads.
That means the forces are not shared equally. Uneven load has two major consequences:
- Faster wear because one component is doing nearly all the work
- Less flex because the assembly does not behave as a balanced system across the full range of motion
By contrast, the ideal approach is a multifunctional, self-centering design on both sides. When both joints flex, dampen, and self-center together, the force loads get distributed more evenly. The result is maximum longevity and performance, plus more consistent NVH behavior.
How the Competitors Measured Up: Degrees of Misalignment Under Load
After applying equal force and measuring until limits/interference, the tested results showed a clear ranking.
Test results (degrees of misalignment):
- TeraFlex: 12.12°
- Skyjacker: 20.0°
- Synergy: 20.6°
- Clayton: 27.8°
- Rock Krawler: 28.6°
- MetalCloak: 35.0° ✅
Bottom line: Other manufacturers improved over the last decade. But MetalCloak’s Duroflex joint still shows the most self-centering articulation in this comparison and remains the benchmark for this test setup.
Why the MetalCloak Duroflex Joint Holds the “Gold Standard” Position
Numbers like 35 degrees are impressive, but they only matter if they translate into real suspension behavior. The distinguishing features highlighted for the Duroflex design are:
- Self-centering flex: Keeps articulation controlled and helps the system return toward a functional neutral alignment.
- Over 35 degrees of misalignment: Gives the suspension more room to track terrain without binding.
- Unlimited rotational range: The joint is not constantly fighting internal restrictions as movement continues.
- Minimal maintenance: Fewer complex components often means fewer failure points and less upkeep.
- NVH dampening: Designed to damp noise, vibration, and harshness rather than transmitting everything directly into the chassis.
And importantly, its performance is tied to how the joint behaves as a system inside the control arm assembly. The goal is not just maximum angle. It is maximum usable articulation with better control and less harshness.
What This Means for Your Build (Practical Takeaways)
If you are shopping for flex joints, the testing highlights a few practical points you can apply immediately.
1) Don’t chase “max flex” without asking how it self-centers
Some designs may reach decent angles in ideal conditions but do not actively help the suspension return smoothly. Self-centering behavior affects ride comfort, handling consistency, and how the suspension behaves at the transition points between bump and droop.
2) Watch for mechanical limits and bracket interference
If a joint design hits a limit early, your suspension will stop flexing even if other components would allow more movement. That can mean less traction and a harsher ride when the suspension binds.
3) Prefer load-balanced, multifunctional designs
When joints on a control arm are dissimilar, one side often becomes the “articulation hero” while the other becomes the “NVH janitor.” That may achieve acceptable results, but it can also concentrate wear and reduce overall flex behavior. Balanced multifunctional joints aim to distribute the load and maintain longevity.
4) Think in terms of longevity
Uneven load distribution leads to faster wear. If a joint is constantly taking nearly 100 percent of the articulation force, that is a wear pattern waiting to happen. Even if performance looks good initially, the long-term outcome can differ.
FAQ
What is a flex joint in a Jeep suspension?
A flex joint is a suspension component that allows the control arm to move through misalignment angles during articulation while also managing NVH. It connects parts of the suspension and is designed to maintain function and control as the suspension cycles.
Why does self-centering matter for articulation performance?
Self-centering helps the suspension return toward a more neutral, controlled alignment as conditions change. That improves consistency, can reduce harshness, and helps prevent the system from staying “stuck” in awkward angles.
How should I interpret “degrees of misalignment” test results?
Degrees of misalignment reflect how far the joint can allow the control arm to move under load before hitting a limit or interference. Higher values often indicate more usable articulation, but it should be paired with self-centering and NVH behavior for the full real-world picture.
Why do dissimilar joints on the same control arm lead to faster wear?
Dissimilar joints can split responsibilities unevenly, meaning one joint handles nearly all articulation forces while the other focuses more on NVH. That concentration of load increases wear rate and can reduce overall flex behavior compared with balanced multifunctional designs.
Which joint performed best in the comparison?
In the results shown for the tested bracket and equal-load methodology, MetalCloak’s Duroflex joint measured at 35.0°, the highest score among the brands listed.
Final Thoughts: The Real Win Is Usable Flex With Better Control
Suspension upgrades get exciting at the install stage, but the real test is what happens under load on rough terrain. Flex joints are one of those components where design choices show up immediately as feel, noise, and consistency.
Based on the measured misalignment performance and the reasoning behind load sharing and self-centering, the MetalCloak Duroflex joint stands out as a benchmark flex joint. Competitors have improved, but in this comparison, the gold standard remains clear: more self-centering articulation with stronger NVH behavior and durability-focused load distribution.
If you are building for long-term performance, smoother articulation, and less harshness as your suspension cycles, that is the direction worth prioritizing.
