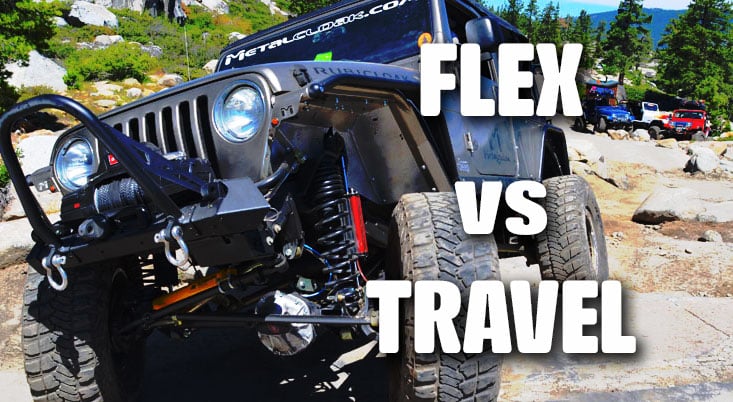

What’s the Difference Between Suspension Travel and Flex?
When modifying a Jeep Wrangler with a solid front axle, two key terms often come up: suspension travel and suspension flex (articulation). While both play a role in off-road performance, they serve different functions. Understanding the difference is critical when deciding how to build your rig for rock crawling, high-speed desert running, or all-around off-road capability.
What is Suspension Travel in a Jeep Wrangler?
Suspension travel refers to how far a wheel moves vertically from full compression (bump) to full extension (droop).
Why is Suspension Travel Important?
- Absorbs impacts from rough terrain – Essential for high-speed desert running and off-road racing.
- Maintains traction on uneven surfaces – Helps tires stay in contact with the ground.
- Improves ride quality – Prevents harsh impacts by increasing suspension movement range.
How to Increase Suspension Travel?
| COMPONENT | EFFECT ON TRAVEL | WHAT IT OPTIMIZES |
|---|---|---|
| Longer Shocks | More up/down range | Use extended-travel shocks with proper valving. |
| Shock Mount Relocation | Maximizes usable shock length | Reposition mounts to prevent bottoming out. |
| Bump Stop Adjustment | Prevents over-compression | Proper bump stop tuning ensures full travel use. |
| Extended Control Arms | Reduces binding | Allows full droop without stress on joints. |
| Longer Coil Springs | More total travel range | Use dual-rate coils for controlled movement. |
| Limit Straps | Protects shocks from overextension | Determine points and locations for straps that maximize distance. |
| High-Clearance Axle Components | Prevents binding | Upgraded axle shafts allow for better movement. |
What is Flex (Axle Articulation) and Why Does it Matter?
Flex, or articulation, is the ability of the suspension to let the front and rear axles move independently from each other. This means one wheel can compress while the opposite wheel droops, keeping all four tires on the ground.
Why is Flex Important for Off-Roading?
- Maintains traction on uneven terrain – Critical for rock crawling.
- Improves vehicle stability – Reduces rollover risk in off-camber situations.
- Reduces reliance on lockers – Better flex keeps tires in contact, reducing the need for forced traction.
How to Improve Flex?
| COMPONENT | EFFECT ON FLEX | WHAT IT OPTIMIZES |
|---|---|---|
| Sway Bar Disconnects | Allows full axle movement | Quick-disconnect sway bars improve articulation. |
| Long-Arm Suspension | Reduces control arm binding | Long arms allow smoother articulation. |
| 3-Link or 4-Link Suspension | Allows unrestricted axle movement | Multi-link setups increase flex potential. |
| Adjustable Track Bars | Centers axle through travel | Prevents unnecessary lateral shift. |
| Soft Spring Rates | Allows greater articulation | Softer springs improve flex without excessive stiffness. |
| Shock Length & Placement | Maximizes droop travel | Mounting shocks properly allows full articulation. |
| High-Flex Control Arms | Prevents binding at extreme angles | Allows for better axle movement in off-camber situations. |
Flex vs. Travel: Which One Do You Need for Your Jeep?
| ASPECT | TRAVEL | FLEX |
|---|---|---|
| Definition | Up/down wheel movement | Side-to-side axle articulation |
| Measurement | Inches from compression to droop | CTI score (Corner Travel Index) |
| Best for | High-speed desert, overlanding, whoops | Rock crawling, uneven obstacles |
| Suspension Type | Long shocks, bump stops, lift springs | Sway bar disconnects, high-flex arms |
| Effect on Ride | Improves impact absorption | Keeps wheels on the ground |
| Influence on Stability | Handles high-speed bumps | Reduces rollover risk on rocks |
| Best Upgrades | Long-travel shocks, extended coils, limit straps | Multi-link suspension, flex joints, disconnectable sway bars |
Do You Need a Long-Arm Suspension for Maximum Flex?
Long-arm kits are often seen as the ultimate upgrade, but they are not always necessary for every Jeep build.
Pros of a Long-Arm Kit
✔ Better suspension geometry for both high-speed and rock crawling.
✔ Reduces harsh angles on control arms, allowing smoother articulation.
✔ More comfortable ride over bumps and dips.
Cons of a Long-Arm Kit
✘ Expensive to buy and install (frame cutting, welding required).
✘ Lower control arm mounting points are exposed to obstacles (risk of damage on rocks).
✘ Unnecessary for dedicated slow-speed rock crawling if high-flex short arms are used.
What’s a Better Alternative for Rock Crawling?
If rock crawling is your primary focus, a high-flex short-arm system can provide long-arm performance without the cost or complexity.
Example: Metalcloak’s Game-Changer Suspension
Instead of requiring a full long-arm setup, this system:
- Uses Duroflex Joints that allow long-arm levels of articulation while keeping factory control arm mounting points.
- Is bolt-on, avoiding the cutting and welding required for a long-arm kit.
- Keeps control arms high and protected, reducing risk of rock damage.
Which Springs Are Better for Off-Roading: Dual-Rate or Progressive?
Spring selection plays a critical role in balancing flex and stability.
Why Dual-Rate Springs Are Ideal for Off-Road Use
- Initial Soft Rate: Provides better flex and comfort at slow speeds.
- Stable Primary Rate: Maintains handling and stability at higher speeds.
- Predictable Performance: Unlike progressive-rate springs, which transition unpredictably between stiffness levels, dual-rate springs provide a controlled shift between flex and load handling.
- More Usable Travel: Maximizes flex without sacrificing stability on-road.
Why Progressive Springs (Triple Rate, Quad Rate) Are Not Ideal for Off-Roading
- The spring rate changes unpredictably as it compresses.
- Less fine-tuned control over articulation and shock damping.
- Often found on general lift kits rather than high-performance off-road systems.
Final Thoughts: How to Build the Best Suspension for Your Jeep Wrangler
- If you want high-speed stability AND articulation → Consider a long-arm suspension with dual-rate springs and high-performance shocks.
- If you focus on rock crawling and want long-arm performance on a budget → A high-flex short-arm kit (like Metalcloak’s Game-Changer) is a better alternative.
- For the best balance of articulation and stability → Use dual-rate springs, disconnectable sway bars, and properly tuned shocks to maximize both flex and travel.
