Toyota Tacoma 4G (2025+) Game-Changer Suspension & Lift Kit
Take your Toyota Tacoma 4G (2025+) beyond the limitations of the factory suspension with the MetalCloak Game-Changer Suspension System & Lift Kit. Engineered as a complete suspension solution, this system delivers improved ride quality, increased wheel travel, enhanced durability, and greater control both on and off-road.
Features Include:- RockSport Black Front Remote Reservoir Coilovers
- Choice of Fabricated or Billet Front Upper A-Arms
- RockSport Black Rear Remote Reservoir Shocks
- True Dual Rate™ Rear Coils
- Duroflex Rear Upper Control Arms
- Duroflex Rear Lower Control Arms
- Durotrak Adjustable Rear Track Bar
- Rear Differential Lock Wire Extension
- Rear Brake Line Extension
Choose between Steel or Billet Aluminum Upper A-arms. The Fabricated Upper A-Arms are designed to deliver strength, durability, and reliable performance both on and off-road. Patented Durotrak Bushings help reduce noise, vibration, and harshness while allowing smooth suspension movement through the full range of travel. Heavy-duty spherical joints provide increased strength and articulation compared to factory components, making them an ideal upgrade for lifted Tacoma applications.
The Billet Aluminum Upper A-Arms combine lightweight construction with exceptional strength and increased alignment flexibility. Double adjusters allow for greater caster and camber correction, helping optimize suspension geometry on lifted vehicles. Their premium construction and adjustability make them an excellent choice for drivers seeking maximum performance and precise handling. The RockSport Black Rear Remote Reservoir Shocks are designed to maximize rear suspension performance while maintaining excellent ride comfort and stability. Adjustable compression tuning, oversized shock bodies, and MetalCloak's patent-pending parabolic valving system work together to provide consistent damping across a wide range of terrain. Their extended-travel design helps improve traction, control, and confidence whether you're crawling over obstacles or cruising down dirt roads.
MetalCloak True Dual Rate™ Rear Coils are engineered to provide increased ride height, improved load carrying capability, and excellent ride quality without sacrificing articulation. Manufactured from premium chrome silicon steel, these coils help maintain stability and control while delivering the flexibility needed for demanding off-road conditions. The dual-rate design allows the suspension to remain comfortable during daily driving while performing confidently on the trail.
The Duroflex Rear Upper Control Arms improve axle control and suspension articulation while maintaining a smooth ride. Constructed from 1.5"OD x .187” wall DOM tubing and equipped with MetalCloak's patented Kevlar®-infused Duroflex Joints, they provide exceptional durability and flexibility throughout the suspension cycle. Their adjustable design allows proper geometry correction for lifted Tacoma applications.
Built from 1.625"OD x .25” wall DOM steel tubing, the Duroflex Rear Lower Control Arms are designed to handle extreme abuse while maintaining predictable handling characteristics. The control arms have an engineered bend to provide the needed clearance at the extremes of articulation. Patented Duroflex Joints provide excellent articulation without excessive harshness, helping improve traction and suspension performance both on and off-road. Their adjustable design ensures proper suspension geometry and long-term reliability.
The Durotrak Adjustable Rear Track Bar helps recenter the rear axle after lifting while improving overall suspension control and stability. Constructed from solid 4130 chromoly steel and equipped with patented Durotrak bushings, it provides the strength required for serious off-road use while maintaining excellent road manners. The adjustable design allows precise axle positioning for improved handling and suspension performance.
As suspension travel increases, the Rear Differential Lock Wire Extension provides the additional slack needed to reduce stress on the factory differential lock wiring. This simple bolt-on component helps improve long-term reliability by preventing unnecessary tension during articulation and full suspension droop.
The Rear Brake Line Extension helps accommodate increased suspension travel by relocating the factory brake line mounting point. By providing additional slack during suspension cycling and articulation, it helps reduce strain on the factory brake line while maintaining reliable brake system operation on and off the trail.
Note: True Dual Rate™ Coils are engineered to perform best with MetalCloak control arms and properly matched shocks.
Note: MetalCloak does not recommend powder coating your True Dual Rate™ coils. The baking process can alter the metallurgical properties of the steel and may result in loss of lift height. Powder coating will void any stated or implied warranty.
Note: We recommend a professional alignment after installation of any suspension system components.
[click for less...]
VIDEOS
MetalCloak's Toyota Tacoma Suspension
Who Is MetalCloak?
MetalCloak creates Game-Changing Products for the Off Road Enthusiast.
Duroflex 101
This short video covers what you need to know about the basics of the Duroflex Joint. How it should be used and what to expect when using it.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc.
Duroflex Joint Maintenance
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Joint Maintenance
Duroflex Joint Revealed
The MetalCloak Duroflex Joint gives better damping properties over OEM style rubber Clevite Joints and provides more misalignment than “other” inferior Flex Joints.
Vibration Damping
We tested our Duroflex Joint using a "Shaker Table" and seismometer app to show how much Vibration Damping the Duroflex Joint gives you compared to other industry leading joints.
A Comparison of Flex
Comparing the Flex of the Duroflex Joint with that of the Johnny Joint, the Teraflex Monster and the typical Clevite.
Durotrak™ Bushing
Eliminate squeaks and clunks in your steering with the technology of MetalCloak’s Durotrak™ bushings; exclusively found in MetalCloak track bars.
What is Corner Travel Index?
Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the country collecting specs on the build and cataloging the results. The data collected allows us to make our own products better.
FMVSS 126 Compliant
MetalCloak not only has the best off road flex, but we are also Federal Motor Vehicle Safety Standard 126 certified and compliant. No other company can match our on- and off-road performance.
THE TECH
Front RockSport Black Coilovers
RockSport Black Coilovers
RockSport Black Coilover Shocks are engineered to conquer tough terrain with precision, strength, and style. Designed, tested, and built in the USA, these high-performance front coilovers deliver a smooth, controlled ride whether you're crawling rocks, bombing desert trails, or daily driving.
RockSport Black Coilover Reservoir
Each shock features a remote reservoir constructed from hard anodized aluminum, finished in a durable black Infinity coating for superior corrosion resistance and a sleek, low-profile look.
Eight Settings Compression Adjustment
Large, easy to grip billet knob with laser marked numbers allow you to change the compression setting simply; choose from 8 settings that add an additional 15% compression force at each click to tune in your Gold Standard. Dial in your off-road comfort along with great daily driving performance.
Braided Hydraulic Hose
The remote reservoir connects to the shock with a 3000psi high working pressure, stainless-steel braided, synthetic lined reservoir hose, with optimized flow orifices to allow unhindered shock oil flow.
RockSport Black Parabolic Valving
Parabolic Valving
Parabolic valving (Patent Pending #63/743,954) provides precision fluid flow in a minimal sized piston stack. Machined parabolic forms contour the butterfly valve shims when under fluid pressure; the shape is contoured to allow variable resistance depending on force-loads allowing an extremely refined tune.
Piston Compression Ports
The smooth bore, multi-ported piston uses a total of 9 ports to produce an even force-load to the butterfly valve shims; 6 for compression and 3 for rebound that ensure longevity and optimal performance. The Shock Piston is finished with functional Type III Mil-Spec Clear HARD Anodize.
Inner Recessed Cap
Our completed package allows for maximum shaft length to be utilized and provides more travel than any similar size Monotube shock; even the internals of the end caps are machined out for additional travel. Removable Bump Cap protects the seal assembly from full compression damage and provides access for servicing the shock.
Oversized Chrome Shaft
Oversized 7/8" hard chrome plated shafts, induction hardened to Rockwell C 60+, exceeding most competitors in durability and can take a beating over and over providing the BEST protection from rock debris; this allows a consistently smooth surface for the seals and wiper to ride on.
Front RockSport Black Coilover Specifications
Front RockSport Black Coilover Lengths
Toyota Coilover Coil Specifications
Spring Specifications
- Free Length:14"
- Solid Height:6.25"
- Coating: Black Powder Coat
Coil Adjustment
The coil spring preload can be adjusted using a gold zinc-plated collar, letting you dial in ride height and coil tension to suit your exact needs. To handle the Toyota’s rugged front end demands
RockSport Black Rear Reservoir Shocks
The RockSport Remote Reservoir Black shocks are specifically made to work with MetalCloak True Dual-Rate Coils; the digressive valving provide the best of slow and fast speed performance.
Shocks are made with 2.5" diameter, 3/16" thick wall aluminum with a huge interior for fluid to ensure they stay cool and hold up to on and off-road abuse.
RockSport Shock Length:- Extended Length: 29.2"
- Collapsed Length: 17.6"
Front Upper Natural Rubber Mount Bushings
The upper mount utilizes natural rubber bushings to deliver a smoother, more controlled ride by effectively isolating vibration and road noise. Unlike harder materials, natural rubber provides just the right balance of compliance and durability, allowing the suspension to absorb impacts without transmitting harshness into the chassis. This results in improved comfort on-road while maintaining reliable performance and articulation off-road.
Eight Settings Compression Adjustment
Large, easy to grip billet knob with laser marked numbers allow you to change the compression setting simply; choose from 8 settings that add an additional 15% compression force at each click to tune in your Gold Standard. Dial in your off-road comfort along with great daily driving performance.
Braided Hydraulic Hose
The remote reservoir connects to the shock with a 3000psi high working pressure, stainless-steel braided, synthetic lined reservoir hose, with optimized flow orifices to allow unhindered shock oil flow.
RockSport Black Parabolic Valving
Parabolic Valving
Parabolic valving (Patent Pending #63/743,954) provide precision fluid flow in a minimal sized piston stack. Machined parabolic forms contour the butterfly valve shims when under fluid pressure; the shape is contoured to allow variable resistance depending on force-loads allowing an extremely refined tune.
Piston Compression Ports
The smooth bore, multi-ported piston uses a total of 9 ports to produce an even force-load to the butterfly valve shims; 6 for compression and 3 for rebound that ensure longevity and optimal performance. The Shock Piston is finished with functional Type III Mil-Spec Clear HARD Anodize.
Inner Recessed Cap
Our completed package allows for maximum shaft length to be utilized and provides more travel than any similar size Monotube shock; even the internals of the end caps are machined out for additional travel. Removable Bump Cap protects the seal assembly from full compression damage and provides access for servicing the shock.
Oversized Chrome Shaft
Oversized 7/8" hard chrome plated shafts, induction hardened to Rockwell C 60+, exceeding most competitors in durability and can take a beating over and over providing the BEST protection from rock debris; this allows a consistently smooth surface for the seals and wiper to ride on.
The RockSport Reservoir Shocks Specifications
Minimized valve stack with unique CNC shim-form provides a compact and simplified valve assembly that eliminates shim stack problems of conventional methods, allowing for our exacting target numbers to be achieved. The unique compressed shim setup allows for maximum shaft length to be utilized and provides more travel than similar size shocks.
Toyota Tacoma A-Arm
Customers can choose between two premium upper A-arm options. The Billet Upper A-Arms are precision-machined from forged aluminum for owners seeking maximum adjustability, steering precision, and suspension tuning capability. The Fabricated Upper A-Arms feature robust formed-steel construction for drivers who prioritize simplicity and durability.
Bushing Ends
Fabricated Upper A-Arms: The Fabricated Upper A-Arms utilize MetalCloak's patented Durotrak Bushings at the frame mounts, reducing noise, vibration, and harshness (NVH) while allowing controlled suspension articulation for a smoother ride on the road and increased compliance off-road.
Billet Upper A-Arms: The Billet Upper A-Arms feature rigid spherical bearings at the frame mounts that eliminate bushing deflection to deliver maximum steering precision, improved suspension response, and consistent alignment under the most demanding on- and off-road conditions.
Ball Joint Ends
Fabricated Upper A-Arms: The Fabricated Upper A-Arms feature a heavy-duty Teflon-lined spherical joint with high-misalignment spacers that provides greater articulation and increased suspension travel, making them ideal for Tacoma owners who prioritize maximum off-road performance and suspension flex.
Billet Upper A-Arms: The Billet Upper A-Arms utilize an OE-style upper ball joint that delivers factory-style reliability, quiet operation, and low-maintenance performance while providing precise steering feel, making them an excellent choice for daily driving, overlanding, and lifted Tacoma builds requiring maximum alignment adjustability.
Dust Covers
Fabricated Upper A-Arms: The Fabricated Upper A-Arms feature a black anodized aluminum dust cap with an engraved MetalCloak "M" logo that is securely retained by the arm's pinch clamp design. This integrated design provides excellent protection for the spherical joint while delivering a clean, premium appearance without the need for additional fasteners.
Billet Upper A-Arms: The Billet Upper A-Arms utilize a bolt-on dust cover that protects the OE-style ball joint from dirt and debris while allowing easy serviceability when needed. Its fastened design securely seals the joint while complementing the Billet A-Arm's precision-machined construction.
Uni-ball Pinch Clamp
The uni-ball is pre-installed and clamped into place. The clamp makes service easy without the need for a press, while the C-clip retainers and pinch clamps hold the uni-ball securely in place.
IT ALL STARTS WITH THE BUSHINGS
The Patented Duroflex™ Joint ( metalcloakpatents.com) is the key to getting the greatest flex in a bolt-on suspension kit. Period.
MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.
Now with Kevlar!
DuPont™ Kevlar® Fiber is now compounded in the proprietary elastomer of the Duroflex Bushing, bringing even more strength, durability and performance.
Kevlar® is a synthetic fiber with extremely high tensile strength to weight ratio…five times stronger than steel and commonly used in bullet proof armor applications.
Duroflex Bushings w/Kevlar® can be identified by the MetalCloak “M” located on the outer surface.
The Duroflex Joint Provides The Best Ride. Period.
Made of a Proprietary Elastomer Compound, the High Vibration Damping and Self-Centering characteristics of the Duroflex Joint means you will always get...
- The best ride quality
- No binding of your control arms.
- None of the micro-wear that DESTROYS Flex Joints
High Misalignment...
By adapting the High Transverse Flex characteristics of a typical Flex Joint, the Duroflex Joint gives you...
- Over 34° of Misalignment
- Over 68° per Control Arm
Absorbs Micro-Movements...
Because the Duroflex Bushing absorbs the millions of Rotational Micro-Movements found in your daily driving, you get...
- Improved Ride Quality
- None of the micro-wear that DESTROYS Flex Joints
True Bearing Surface...
The outer surface of the Duroflex Bushing acts as a bearing, breaking free when called for, giving you...
- Maximum Rotation & Articulation
- No "Binding Up" of the Control Arms
Low Maintenance & Rebuildable...
Unlike typical Flex Joints, the Duroflex does not require replacing key parts every year like others...
But, when you do need to rebuild it, it is MetalCloak Easy!
Just pull out the Duroflex Bushing, clean it up, add some new Teflon impregnated, synthetic silicone grease. Reassemble.
Done.
Forged for Strength...
The adjustable threaded ends are Forged providing a 37% higher fatigue strength over inferior cast parts, this EXTRA rock bashing strength will hold up to whatever you throw at em.
- 1/4" Wall DOM Steel
- 1.625" OD
- Threaded Forged Ends
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- 3/16" Wall DOM Steel
- 1.5" OD
- Threaded Forged Ends
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
Degrees of Articulation
MetalCloak's Duroflex Joint provides 28˚ more articulation and flex than typical control arms!
Shoehorn Washers
The Toyota rear upper control arms are easy to install with the provided 1/8" steel dual shoehorn washers that help guide the control arms into place. The shoehorn washers are finished in MetalCloak's signature gold zinc.
Not just any track bar bushing...meet the Patented Durotrak
The Patented Durotrak™ Bushing (metalcloakpatents.com) is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.
Solid Chromoly Track Bars Keeps You... Well.. On Track
Durotrak Rear Track Bar - Specifications
What are True Dual Rate Coils?
MetalCloak True Dual Rate™ Coils have one of the longest free length in the industry for greater articulation without sacrificing the OEM ride quality.
Without the advantage of the Dual Rate Design, the required Spring Rate would be too low and "squishy" -- just loading your Toyota up with supplies would affect ride height and quality.
True Dual Rate Coils Create A "Virtual" Bucket!
By effectively lowering the bucket on the coil, you get a much more stable ride that reduces the potential for buckling. (Learn More about True Dual Rate Coils)
True Dual Rate Coil Specifications
Spring Specifications
- Free Length: 19.5"
- Solid Height: 5.125"
- Coating: Black Powder Coat
Sway Bar End Links
The rear sway bar end link adjustable design provides the flexibility needed to properly set sway bar geometry on lifted vehicles while accommodating suspension variations and fine tuning rear suspension performance.
Constructed from .625" OD steel, the end links are built to withstand the demands of both daily driving and off-road use. The durable design provides the strength required for increased articulation and suspension travel.
Toyota Tacoma Rear Brake Line Extension
Lifting your Tacoma increases suspension droop and axle movement, which can place additional stress on the factory rear brake line. The Rear Brake Line Extension helps reposition the brake line mounting point to provide the additional slack needed during suspension cycling and articulation.
Constructed from durable 1/8" hot rolled steel, the bracket is built to handle harsh off-road conditions while maintaining strength and reliability. The gold zinc finish provides corrosion resistance against mud, water, and road debris for long-lasting durability.
Toyota Rear Differential Lock Wire Extension
Lifting your Tacoma can place additional stress on factory wiring components as travel increases. This extension bracket helps provide the additional slack and support needed to reduce unnecessary tension on the rear differential lock wire, helping improve reliability both on and off the trail. Constructed from durable 1/8" hot rolled steel and finished in a corrosion-resistant gold zinc coating, this bracket is built to handle harsh trail conditions while maintaining long-term durability.

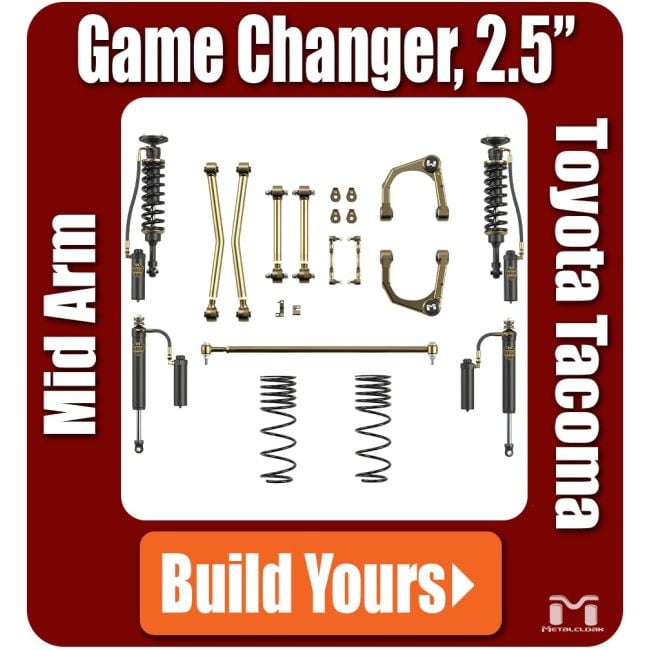

What's In The Kit?
- Front RockSport Black Coilovers
- Rear RockSport Black Shocks
- Front A-Arms (Fabricated or Billet)
- Rear Durotrak Track Bar
- Rear Lower Control Arms
- Rear Upper Control Arms
- Rear True Dual Rate Coils
- Rear Sway Bar End Links
- Locker Wire Relocation Bracket
- Brake Line Relocation Bracket
TECHNICAL SPECIFICATIONS
| Items | Details |
|---|---|
| Compatibility | 2025+ Toyota Tacoma |
| Shock Body | 2.5" Aluminum (3/16" Wall) |
| Shaft | 7/8" Rockwell C 60+ Hardened Chrome Shaft |
| Reservoir Clamp | Billet Aluminum |
| Shock Mount | 3/16" Hot Rolled Steel |
| Choice of A-Arms | Fabricated Steel Billet Aluminum |
| Durotrak Bushing | Proprietary Vulcanized Elastomer |
| Rear Upper Control Arms | 1.25 OD x .187 Wall DOM Steel Tubing |
| Rear Lower Control Arms | 1.625 OD x .25 Wall DOM Steel Tubing |
| Duroflex Joint | Proprietary Vulcanized Elastomer made with DuPont™ Kevlar® fiber |
| Track Bar | 4130 Solid Chromoly |
| Durotrak Bushing | Proprietary Vulcanized Elastomer |
| Extended Length | Front: 25.0" Rear: 29.2" |
| Collapsed Length | Front: 18.4" Rear: 17.6" |
| True Dual Rate Coils | High-Tensile Chrome Silicon Steel |
| Sway Bar End Links | .625 OD Steel |
| Steel Coating | HARD Black Anodize - Shock Body/Reservoir Gold Zinc Black Powder Coat |
IMPORTANT NOTES
Performance: True Dual Rate Coils have been engineered to perform best with Duroflex control arms and 6Pak or RockSport shocks.
True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate coils. The baking process in powder coating can, in some cases, cause the metallurgical properties of the coils to be changed, resulting in the loss of the lift properties of the coils. As such, the process of powder coating the coils will void any warranty stated or implied in relation to the coils.
Vehicle Alignment: We recommend you have a suspension specialist align your Tacoma once a MetalCloak suspension is installed.
INSTALLATION
| Installation Difficulty | Moderate |
| Body Modification | None |
| Time to Install | 4 - 6 Hours |
| Installation Instructions | Click Here to see a full list of MetalCloak Installation Instructions. |
