INEOS Grenadier Game-Changer Suspension & Lift Kit, 2.5", No Shock Edition
MetalCloak's INEOS Grenadier 2.5" Game-Changer Suspension Lift Kit includes True Dual-Rate™ Coil Springs and our best suspension components, providing the adjustability needed to maximize the unrealized potential of the Grenadier platform.
Features Include:- 2.5" Suspension Lift
- Front Adjustable Duroflex Control Arms
- Rear Adjustable Duroflex Control Arms
- Front Adjustable Durotrak Track Bar
- Rear Adjustable Durotrak Track Bar
- Front & Rear True Dual-Rate™ Coil Springs
- Optional Rear Spring Spacers for Maximum or Heavy Loads
- Optional Front Sway Bar Quick Disconnects
- Made in the USA
MetalCloak changes the game when it comes to coil springs. We offer the only True Dual-Rate™ Coil Springs available for the Grenadier. Our exclusive coils provide exceptional extended length for stability at the extremes of articulation while delivering excellent on-road and off-road handling and impressive load-carrying capability.
Kevlar-infused Duroflex joints are housed in adjustable forged ends for maximum strength. These ends thread into strong 1.625" OD DOM control arms, providing the adjustability needed to correct pinion and caster angles. Duroflex joints have more than a decade of documented success, providing exceptional articulation, better-than-stock NVH (noise, vibration and harshness) performance and maintenance-free durability for your INEOS Grenadier.
The adjustable front and rear Durotrak track bars add strength for off-roading while allowing the axles to be centered after modifying the vehicle's lift height. The track bars feature MetalCloak's patented two-piece Durotrak bushings installed in forged, CNC-machined housings. Each housing is fastened to a solid 1.375" OD 4130 chromoly bar for undeniable strength. The complete assemblies are finished in our signature gold zinc for outstanding protection against the elements.
This suspension lift provides a smoother ride on the road while maximizing performance off-road. For work or play, enjoy the gold-standard performance of the MetalCloak Grenadier suspension.
Optional rear load spacers and front sway bar quick disconnects allow you to fine-tune the performance and stance of your Grenadier based on how you use your vehicle.
Note: We recommend having a suspension specialist align your Grenadier after installing MetalCloak suspension upgrades.
[click for less...]
VIDEOS
MetalCloak's Suspension is the proven leader among production suspension systems.
Duroflex 101
This short video covers what you need to know about the basics of the Duroflex Joint. How it should be used and what to expect when using it.
Why Gold Zinc?
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Gold Zinc
Duroflex Joint Maintenance
It's time for The MetalCloak Minute... where we answer frequently asked questions in about a minute. Today's topic: Joint Maintenance
Duroflex Joint Revealed
The MetalCloak Duroflex Joint gives better dampening properties over OEM style rubber Clevite Joints and provides more misalignment than “other” inferior Flex Joints.
Vibration Dampening
We tested our Duroflex Joint using a "Shaker Table" and seismometer app to show how much Vibration Dampening the Duroflex Joint gives you compared to other industry leading joints.
A Comparison of Flex
Comparing the Flex of the Duroflex Joint with that of the Johnny Joint, the Teraflex Monster and the typical Clevite.
Durotrak™ Bushing
Eliminate squeaks and clunks in your steering with the technology of MetalCloak’s Durotrak™ bushings; exclusively found in MetalCloak track bars.
What is Corner Travel Index?
Since 2014 MetalCloak has tested thousands and thousands of rigs at events all across the country, collecting specs on each build and cataloging the results. The data collected allows us to make our own products better.
THE TECH

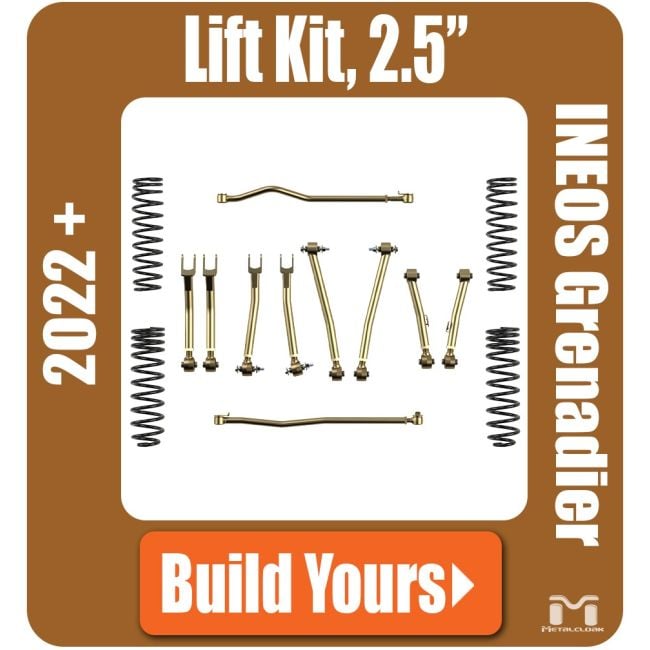

What's In The Kit?
- Front Lower Adjustable Duroflex Control Arms
- Front Upper Adjustable Duroflex Control Arms
- Rear Lower Adjustable Duroflex Control Arms
- Rear Upper Adjustable Duroflex Control Arms
- Front Adjustable Durotrak Track Bar
- Rear Adjustable Durotrak Track Bar
- Front & Rear True Dual Rate Coils
IT ALL STARTS WITH THE BUSHINGS
The Patented Duroflex™ Joint (metalcloakpatents.com) is the key to getting the greatest flex in a bolt-on suspension kit. Period.
MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.
Now with Kevlar!
DuPont™ Kevlar® Fiber is now compounded in the proprietary elastomer of the Duroflex Bushing, bringing
even more strength, durability and performance.
Kevlar® is a synthetic fiber with extremely high tensile strength to weight ratio…five times stronger
than steel and commonly used in bullet proof armor applications.
Duroflex Bushings w/Kevlar® can be identified by the MetalCloak “M” located on the outer surface.
Control Arm Duroflex Joint Alignment...
At MetalCloak we take the care to build every product right.
Most manufacturers build their control arms misaligned from center. Why? It simply costs less to do so.
By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.
It makes them easier to install, too!
Threaded Forged Ends
Forged for Strength...
The adjustable threaded ends are forged, providing 37% greater fatigue strength than inferior cast parts. This extra rock-bashing strength will hold up to whatever you throw at 'em.
Control Arm Specs
- CNC Formed
- 1/4" Wall DOM Steel
- 1.625" OD
- Threaded Forged Ends
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- CNC Machined
- 1/4" Wall DOM Steel
- 1.625" OD
- Threaded Forged Ends
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint
- CNC Machined
- 1/4" Wall DOM Steel
- 1.625" OD
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- Lengthened 5/8" for Best Axle Position
- Threaded Forged Ends
- CNC Formed
- 1/4" Wall DOM Steel
- 1.625" OD
- Precision Locking Nut
- Threaded Forged Ends
- Gold Zinc Plated
- Duroflex Joint at Both Ends
- Lengthened for Best Axle Position
Degrees of Articulation
MetalCloak's Duroflex Joint provides 28˚ more articulation and flex than typical control arms! (Learn More About Duroflex Control Arms)
Not just any track bar bushing...meet the Patented Durotrak
The Patented Durotrak™ Bushing (metalcloakpatents.com) is an NVH (noise, vibration and harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two-part bushing consists of two pieces that thread together, making it simple to install without a press. It reduces vibration and harshness transferred to the driver while improving vehicle steering input. (Learn More About Grenadier Durotrak Track Bars)
Solid Chromoly Front Track Bar Keeps You... Well... on Track
Formed for maximum up-travel and down-travel on the INEOS Grenadier, the front and rear track bars provide adjustability, exceptional strength, clearance and improved ride stability. These components add strength for off-roading and allow the axles to be centered correctly after altering the lift height.
Grenadier Durotrak Rear Track Bar
What are True Dual Rate Coils?
MetalCloak Grenadier True Dual Rate™ Coils have some of the longest free lengths in the industry for greater articulation without sacrificing the OEM ride quality.
Without the advantage of the Dual Rate Design, the required Spring Rate would be too low and "squishy"—just loading your Grenadier with supplies would affect ride height and quality. (Learn More About Grenadier True Dual Rate Coils)
Optional Front Sway Bar Disconnects
Disconnecting the sway bar while off-road allows your Grenadier to achieve the maximum articulation that your suspension has been designed for. Not just repackaged parts, these are top quality pieces built specifically for HD Grenadier applications. The MetalCloak Grenadier Sway Bar Quick Disconnects are easy to disconnect and then re-connect.
Spherical Rod End
The sway bar links feature precision-ground, hard-chrome-plated spherical rod ends made of carbon steel. Their self-lubricating races provide greater rigidity and a much longer service life than end-link bushings.
Optional Rear Load Spring Spacers
The Rear Load Spring Spacer adjusts the rear height of your Grenadier and provides a level stance for proper handling when towing or operating at maximum payload. This easy-to-install, fully welded steel spacer corrects the Grenadier's rake and allows it to haul heavy loads as designed. The load-lift spacer has a gold zinc finish to protect it from the elements.
TECHNICAL SPECIFICATIONS
|
IMPORTANT NOTES
Suspension Alignment: We Recommend You Have a Suspension Specialist Align Your Grenadier after MetalCloak Suspension Components have been Installed.
System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
